Overview
Cutting-edge magnetic levitation non-contact direct drive technology
Friction-free direct drive for ultra-quiet, stable operation with no belt vibration
Equipped with 512-point high-precision angular detection

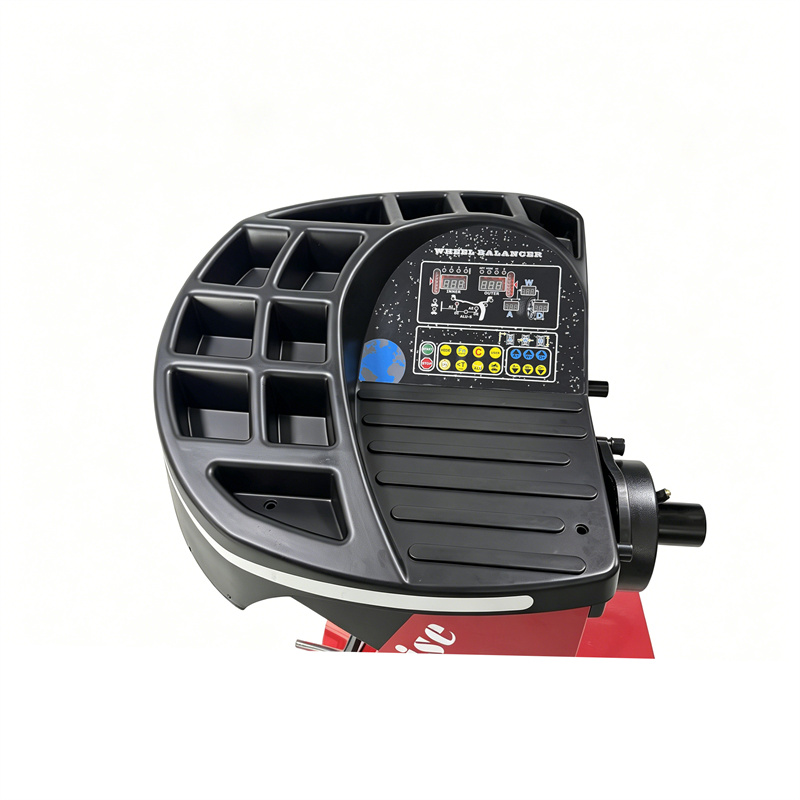

LED display, clear operation interface
Multi-languages(English, French, German and Italian etc.)
Self diagnosis and calibration
Gram/ounce selection and mm/inch selection.
Automatic break

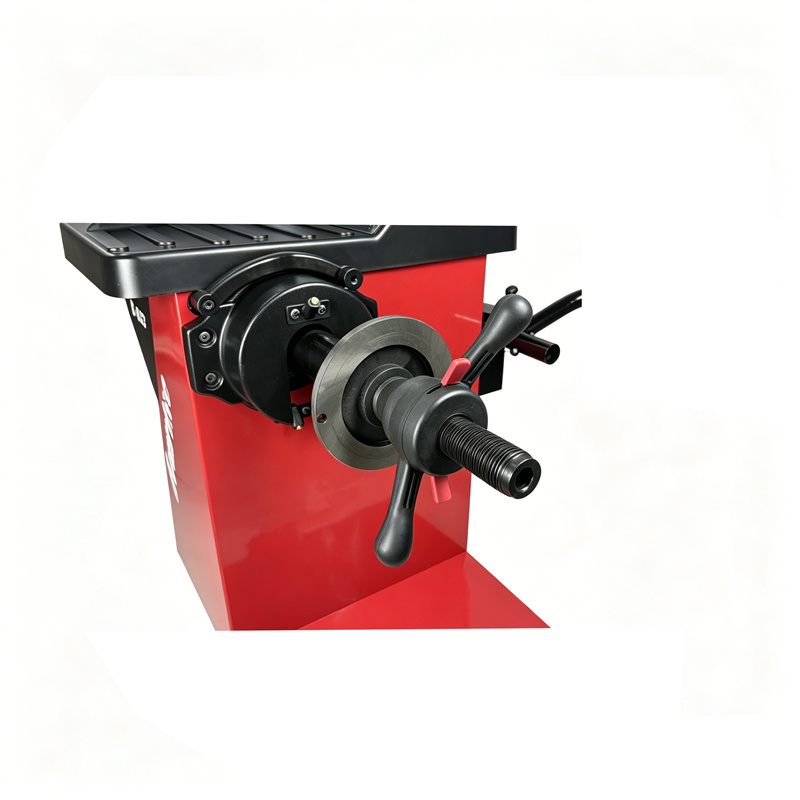

40mm shaft,more stable
Laser and radar optional

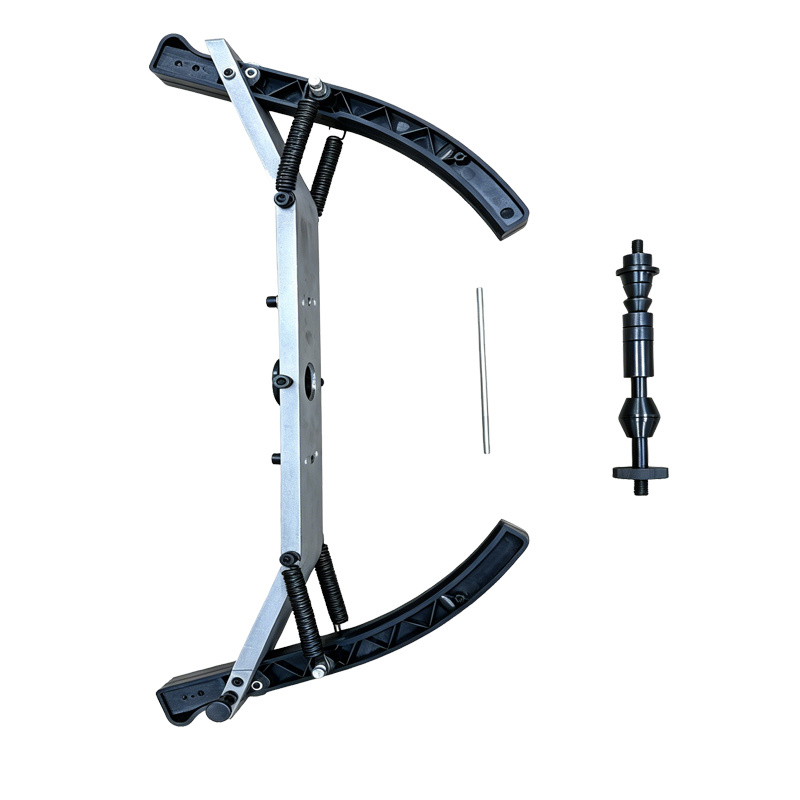

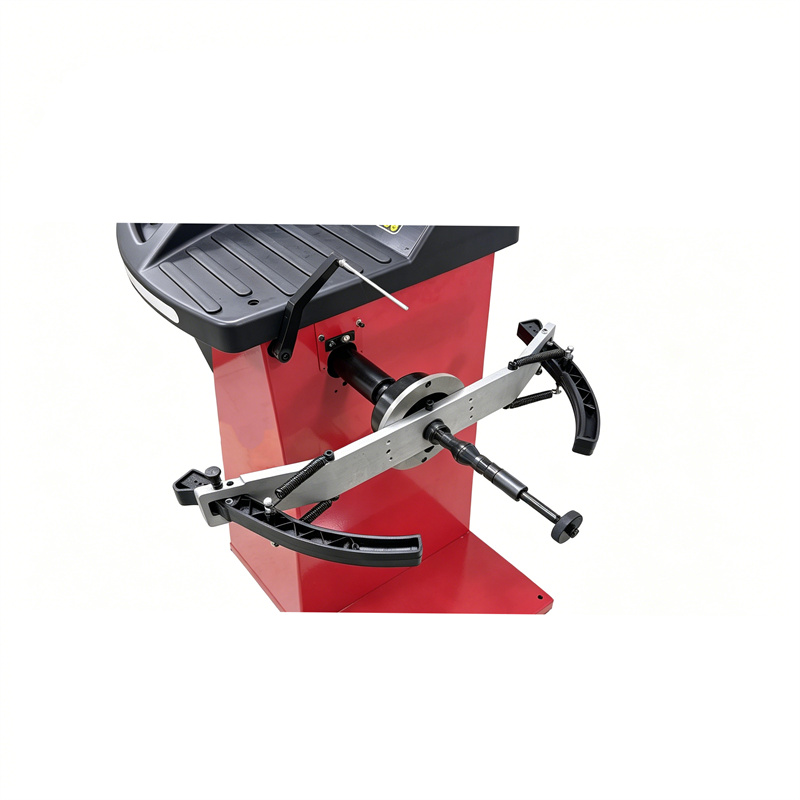

Motocycle adaptor optional
Specifications
| Power supply | 110V/220V1ph 220V/380V3ph |
| Motor power | 185～320W |
| Balancing speed | ≤190r.p.m |
| Balancing Precision | ±1g |
| Rim diameter | 255～762mm（10"-30"） |
| Rim width | 40～508mm（1.5"-20"） |
| Max wheel weight | 80kg |
| Noise | ＜70dB |
| Package size | 11508801170mm |
| N.W/G.W | 100kg/120kg |
