Overview

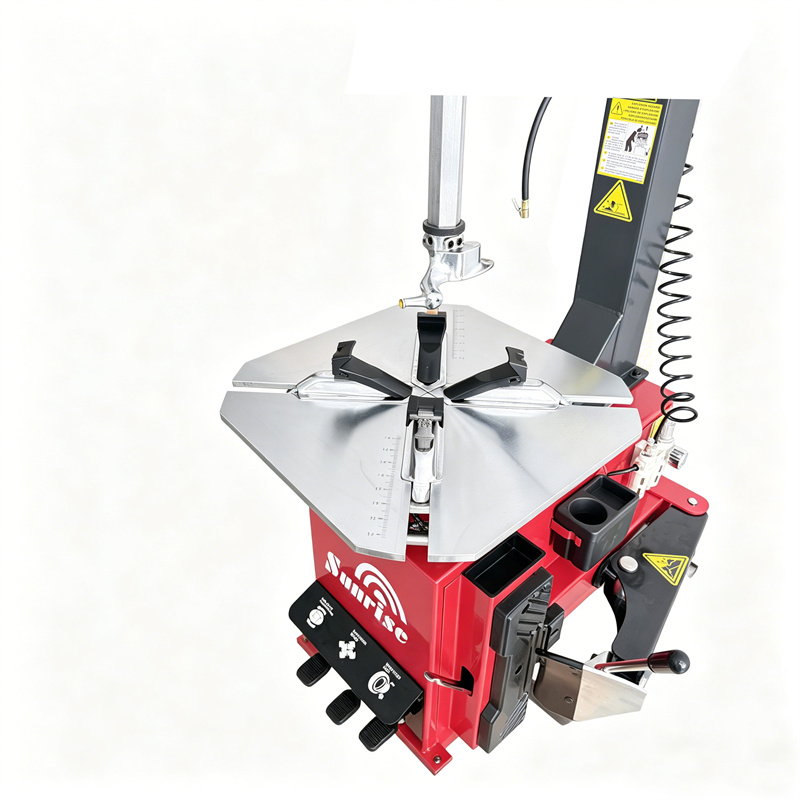

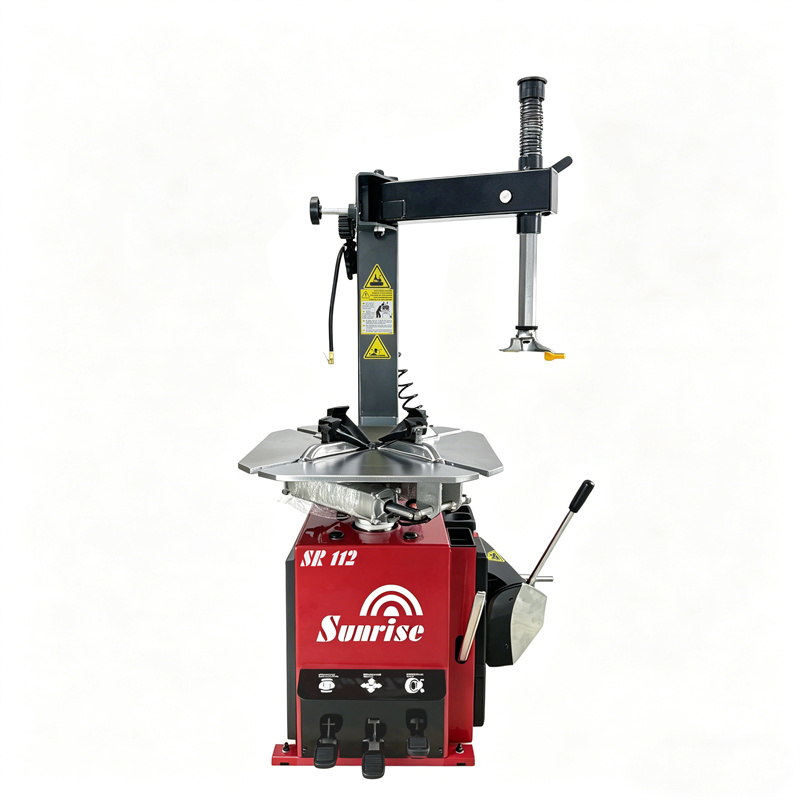

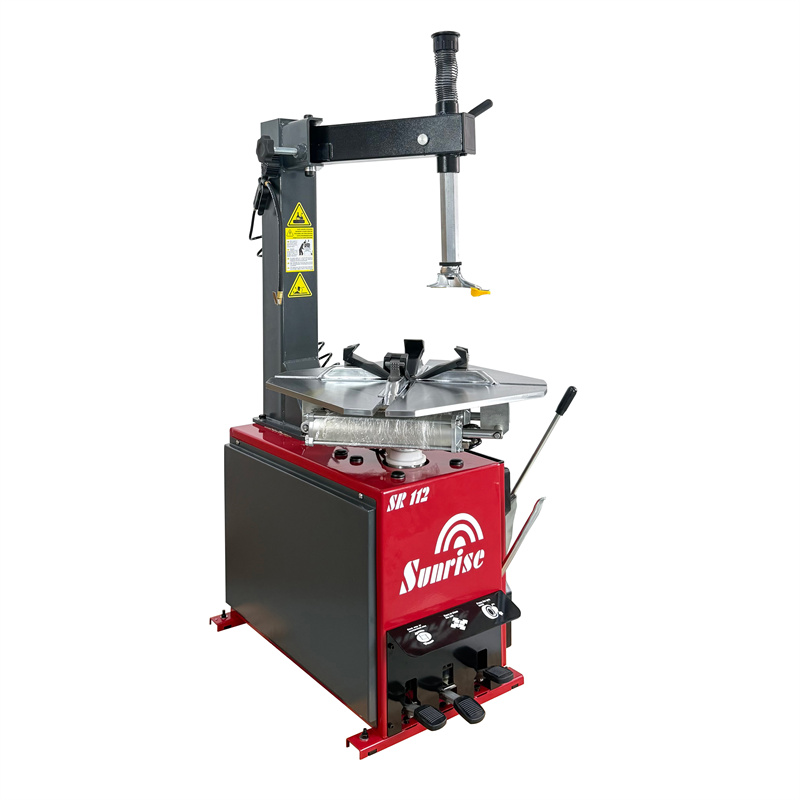

Swing arm and semi-automatic style
Manual operation of mounting/demounting tool

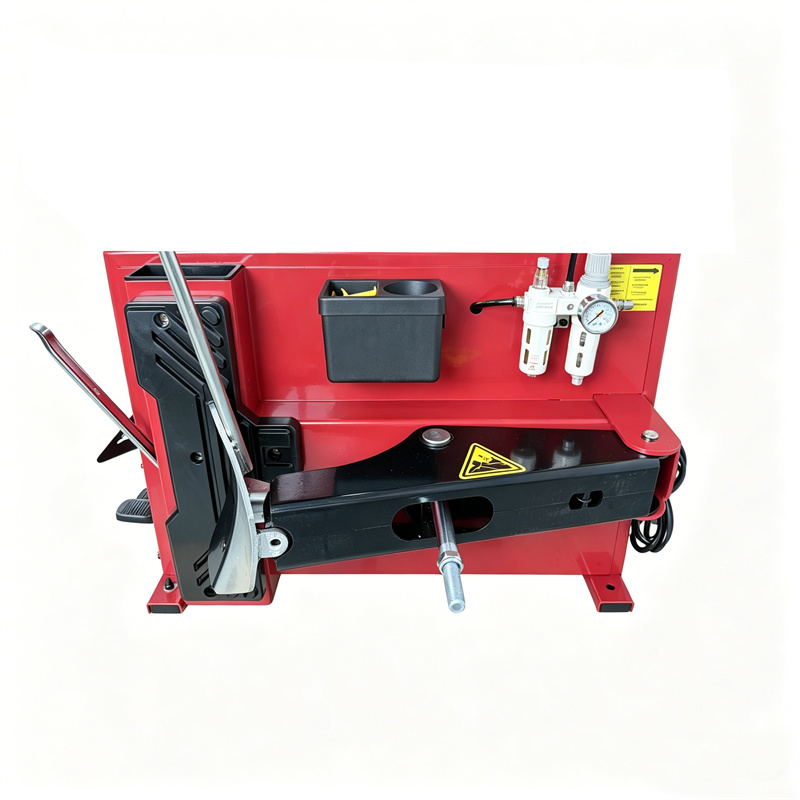

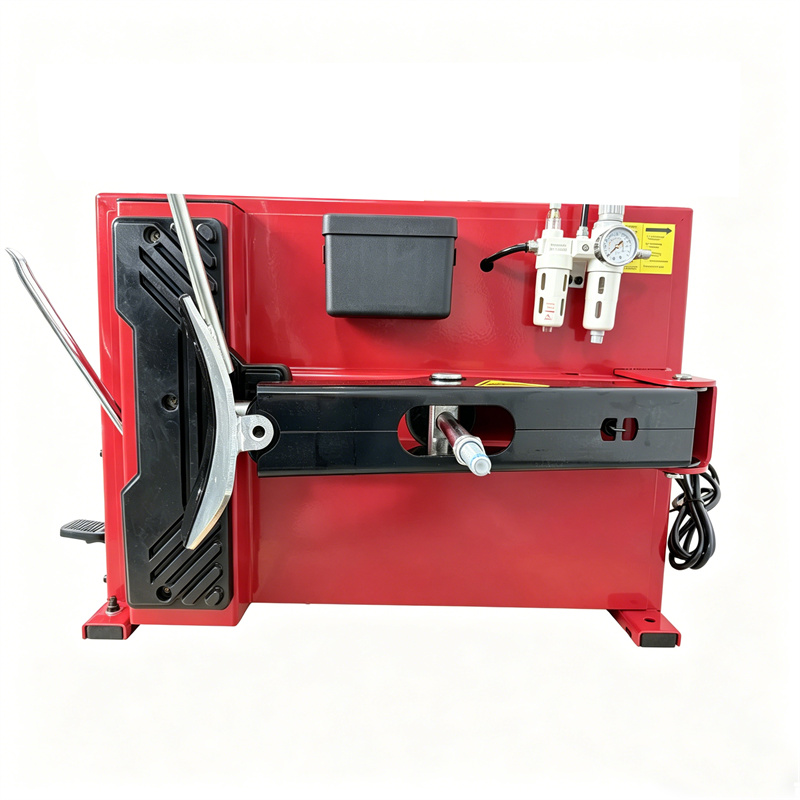

Strong pneumatic bead breaker

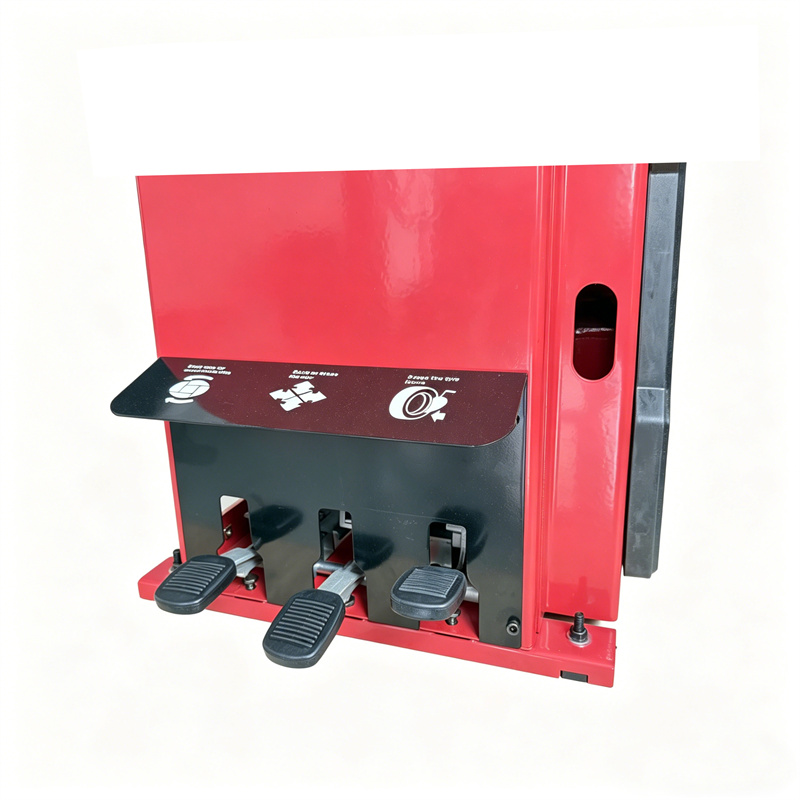

Ergonomic design of 3 pedals makes the operation quicker and safer.

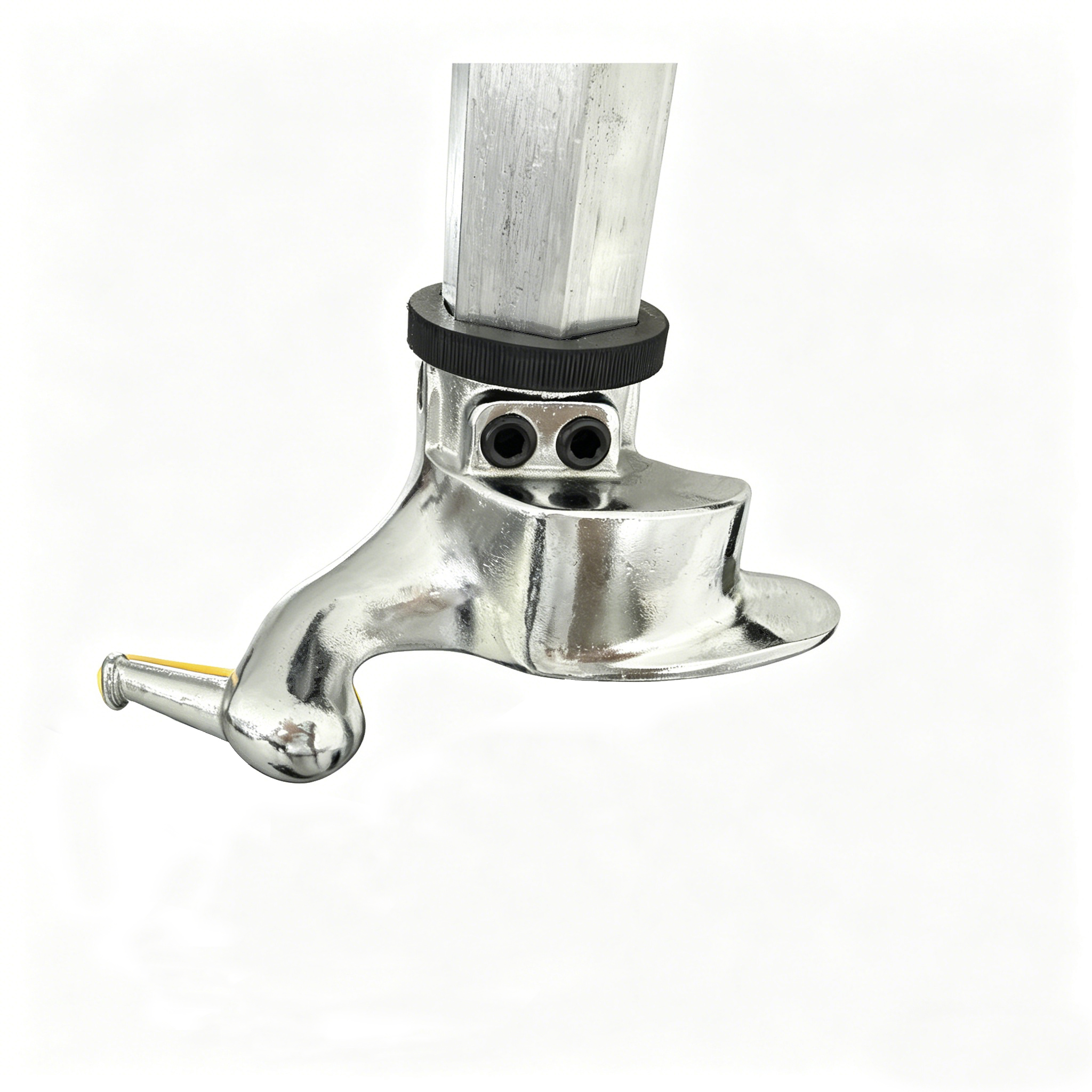

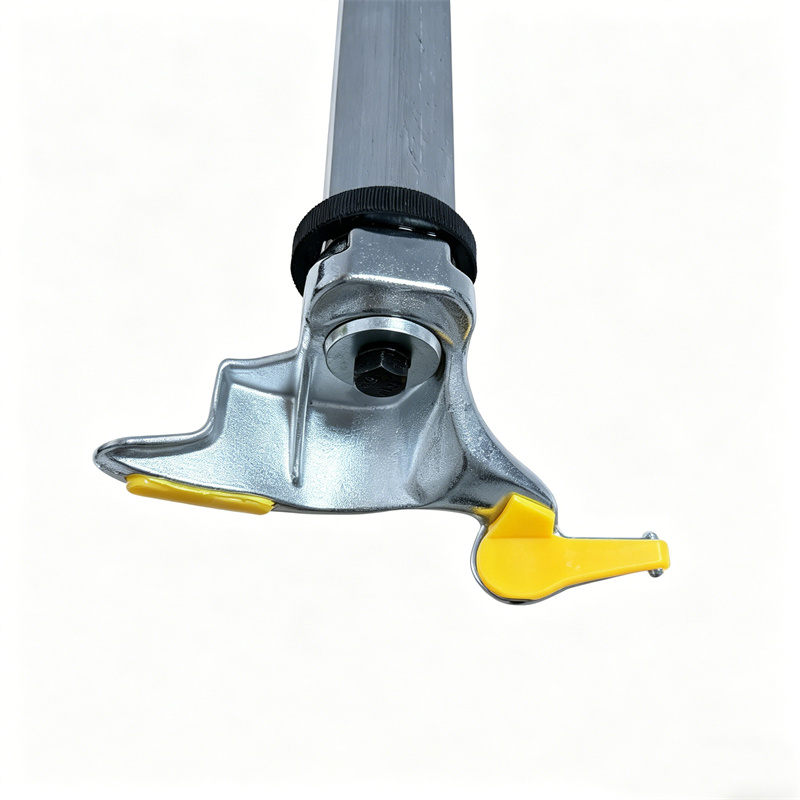

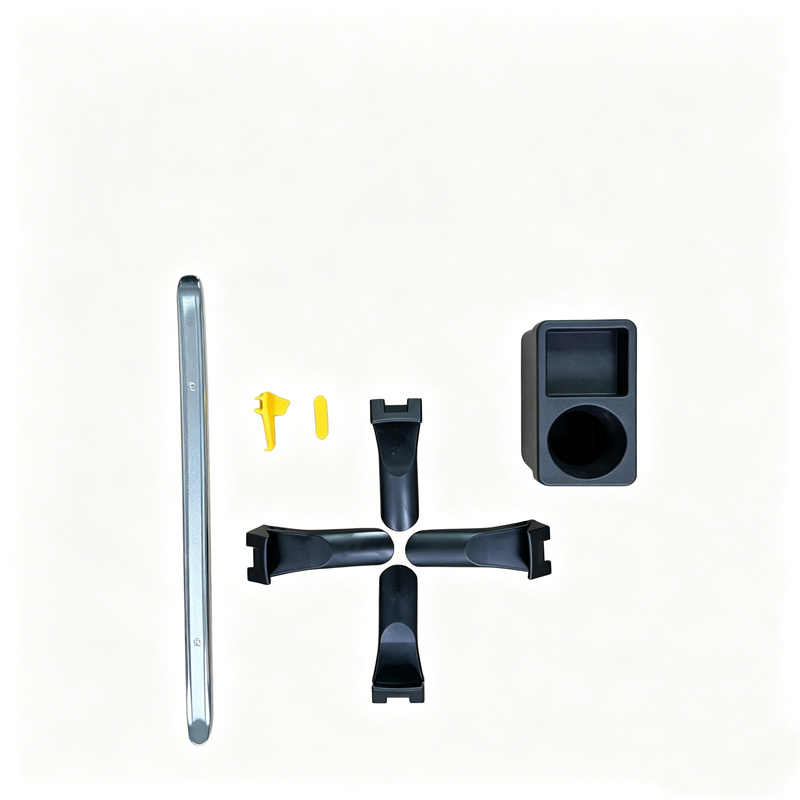

Optional plastic mounting/demounting head helps protect expensive alloy wheels

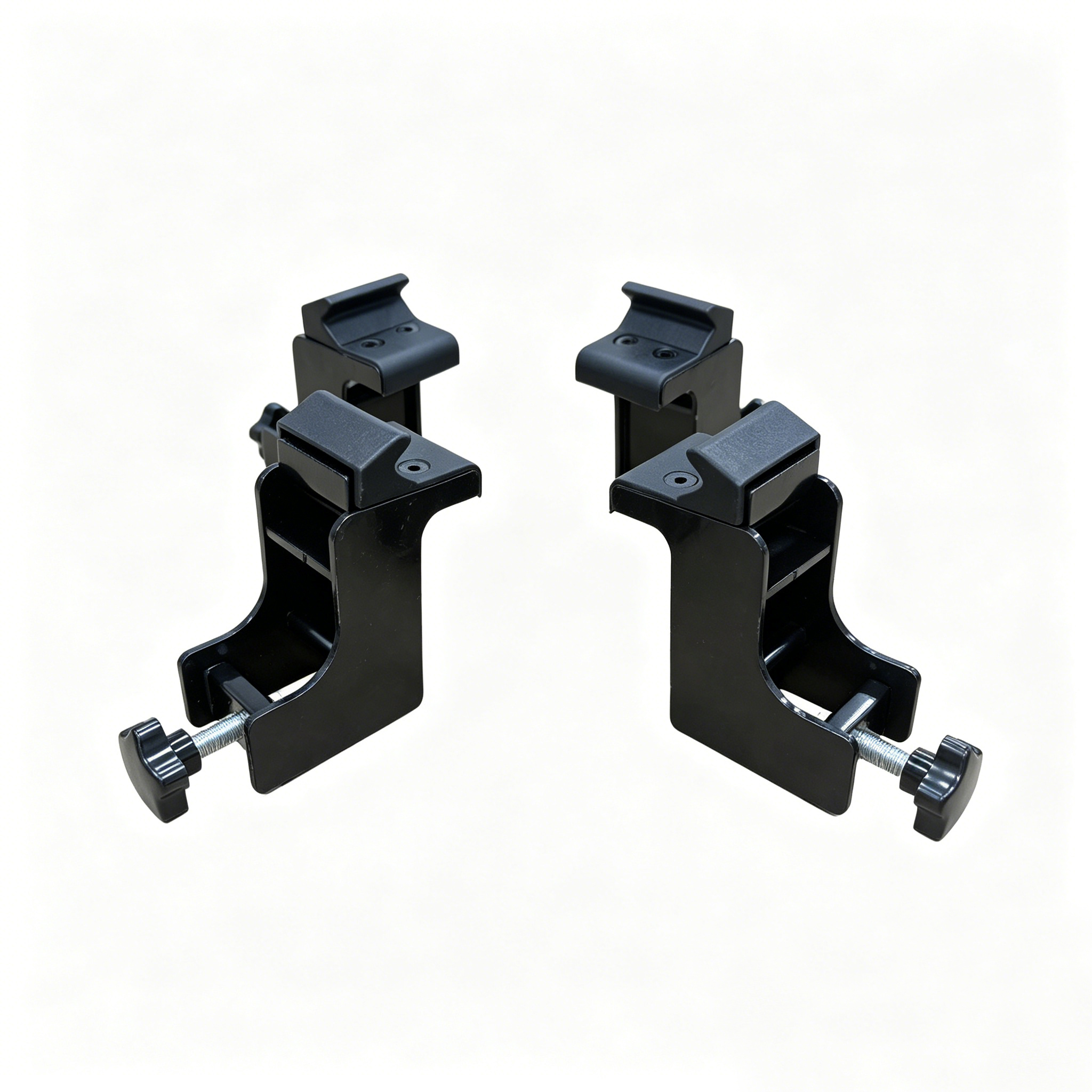

Motorcycle adapter is optional
Specifications
| Power supply | 110V/220V1HP 220V/ 380V3HP |
| Motor power | 0.75/1.1KW |
| Bead breaker force | 2500Kgs |

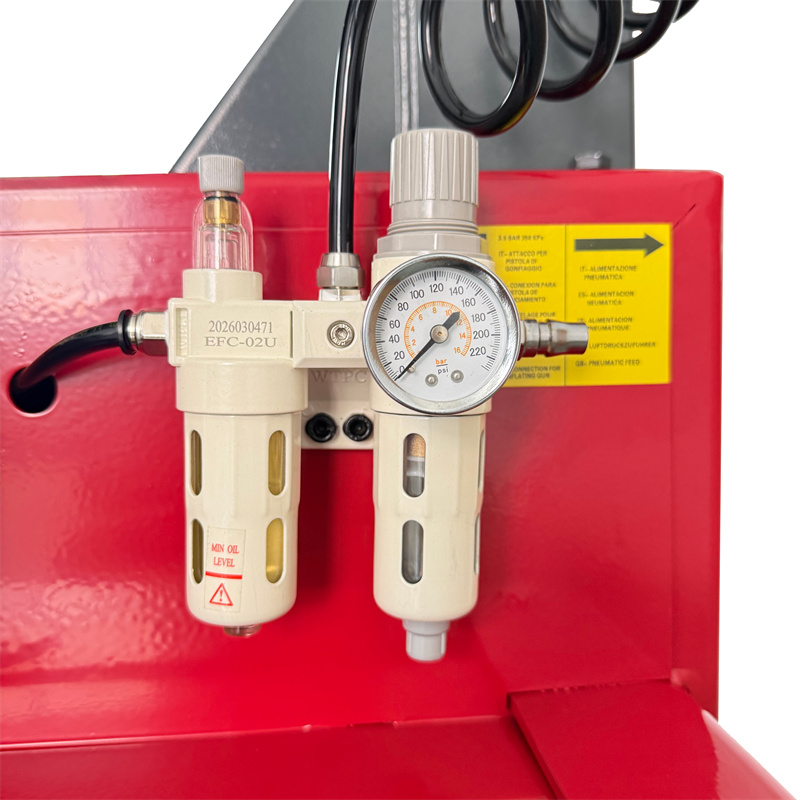

| Operating pressure | 0.8～1.0MPa |

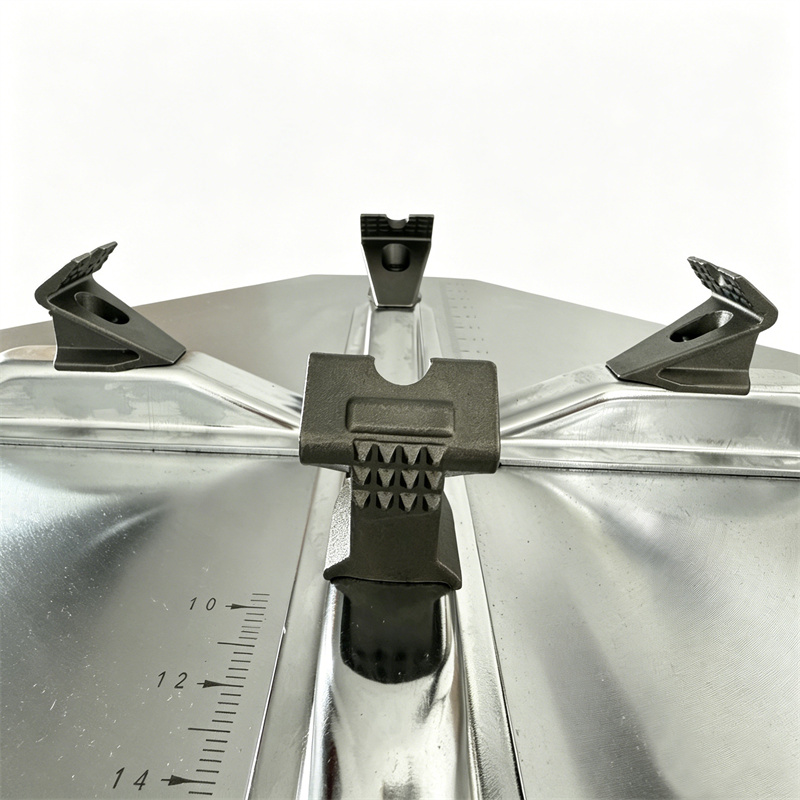

| Rim clamping range(External) | 10"～20" |
| Rim clamping range(Internal) | 10"～22" |
| Rim width | 3"～16" |
| Max wheel diameter | 1000mm |
| Noise | ＜70dB |
| Package size | 970770900mm |
| N.W/G.W | 180Kgs/200kgs |
