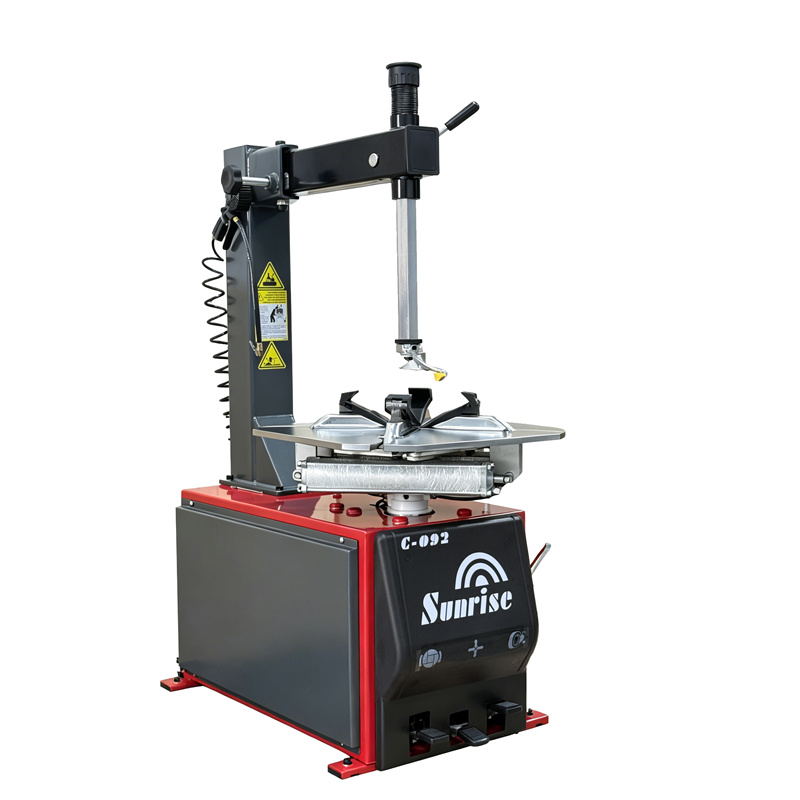

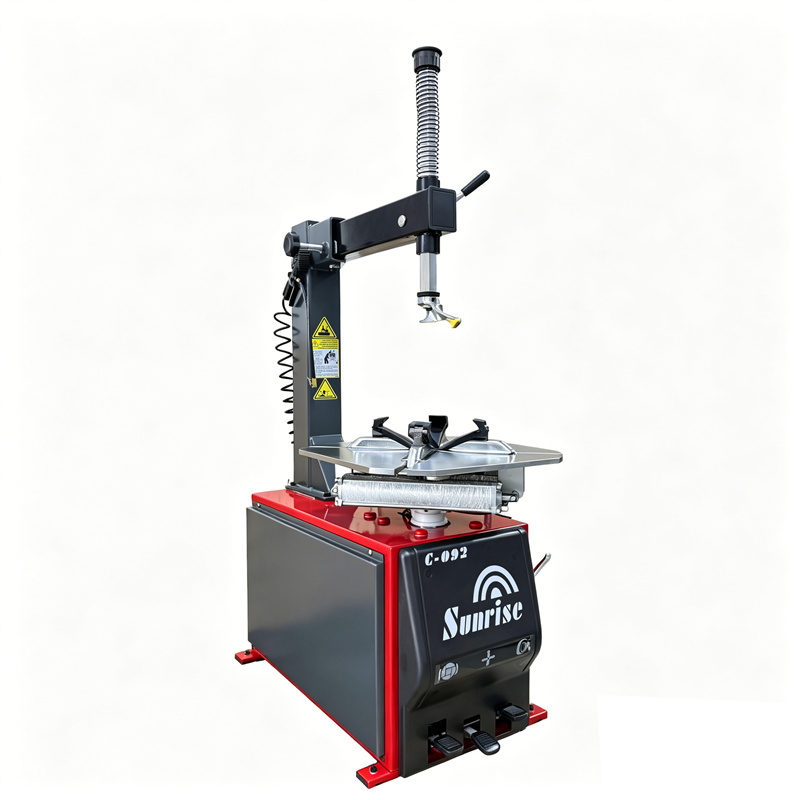

Overview

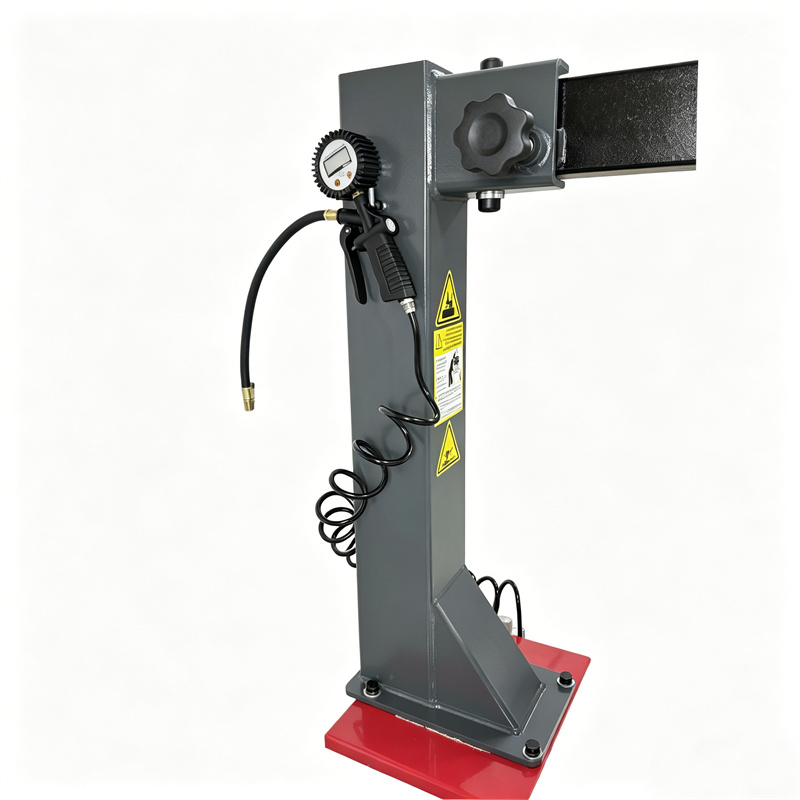

Stable swing arm structure, easy to adjust positioning

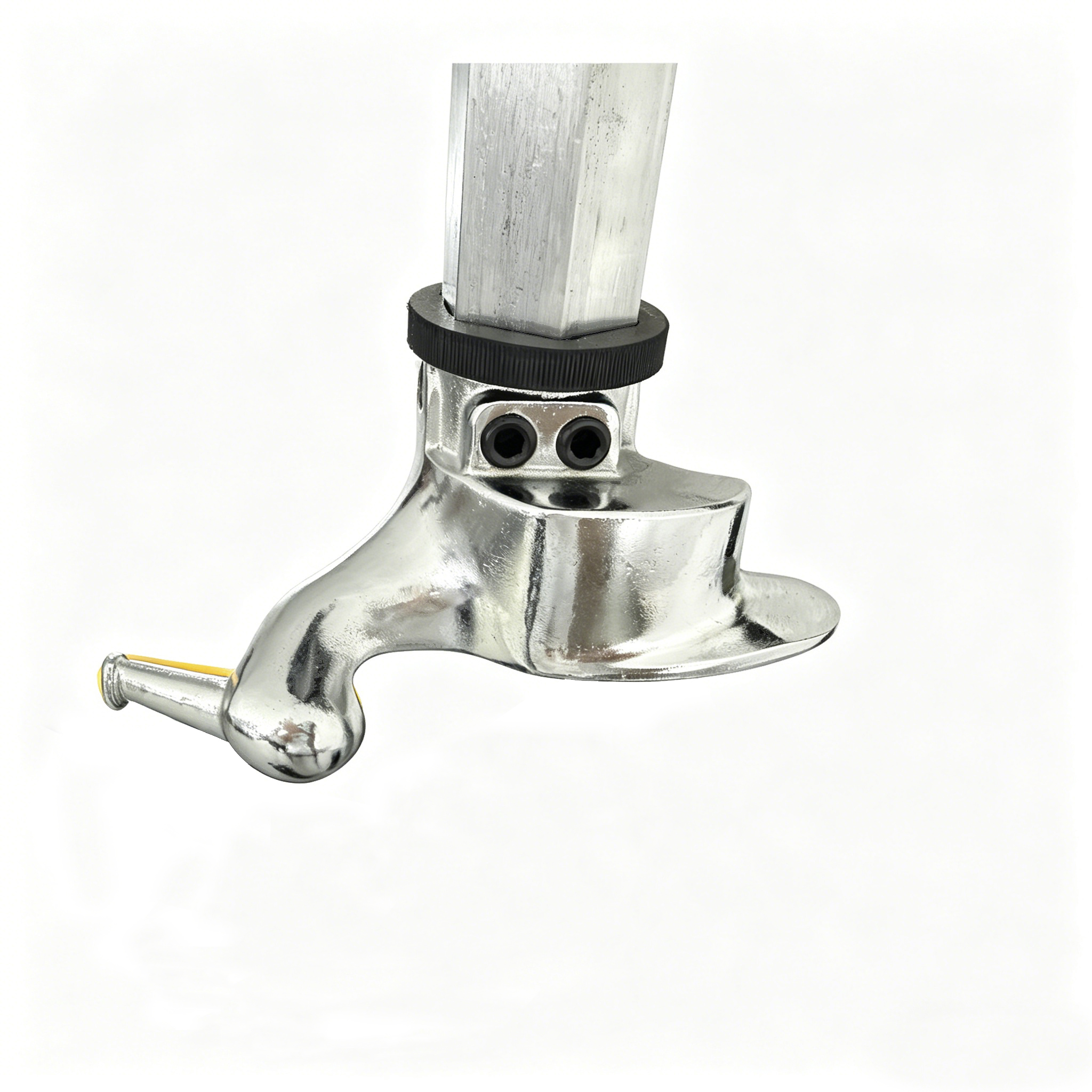

Manual operation of mounting/demounting tool

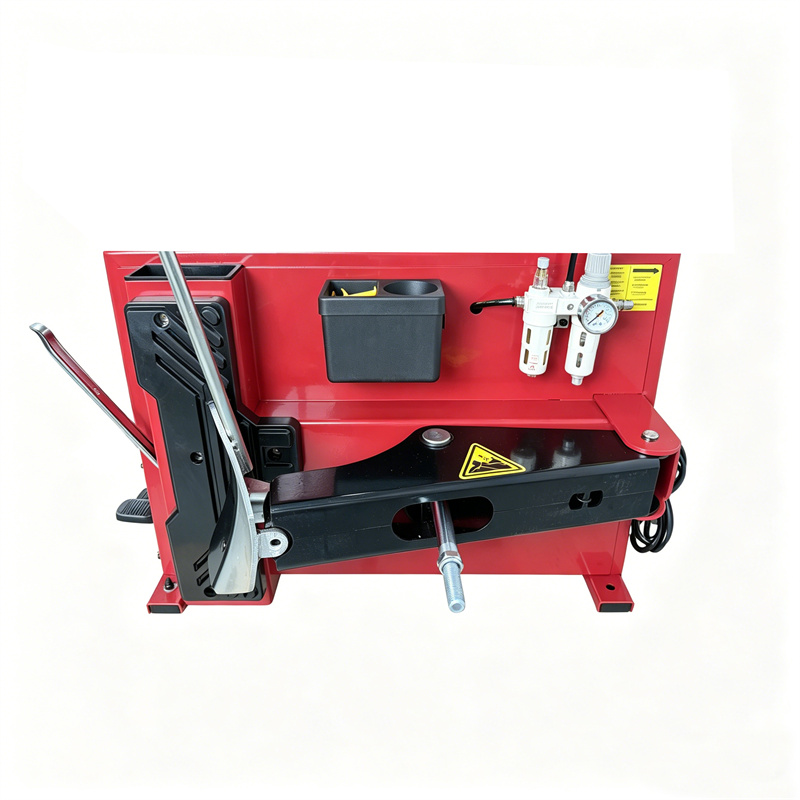

Strong pneumatic bead breaker

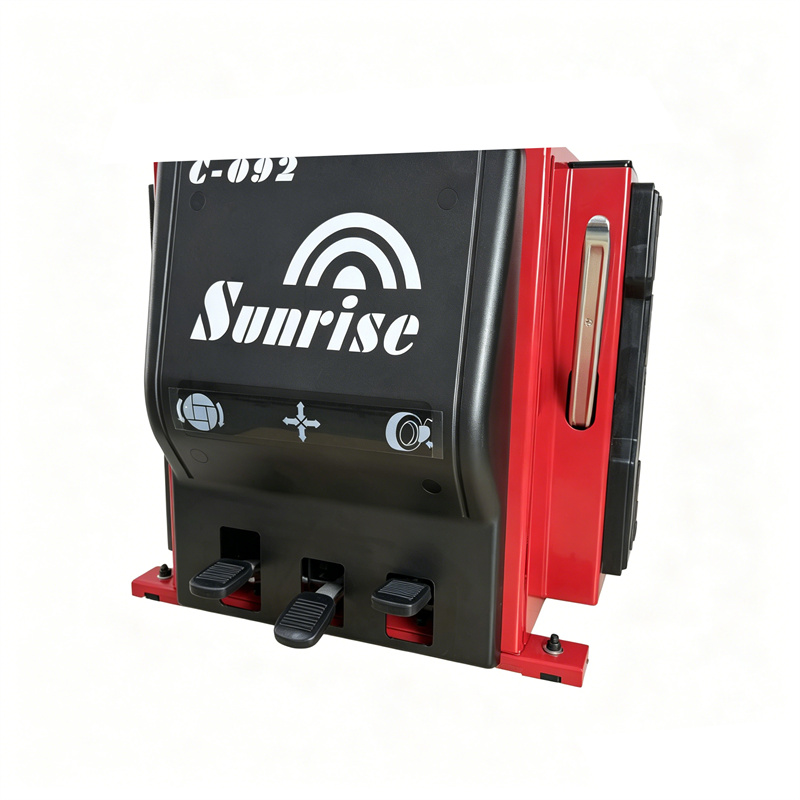

Ergonomic design of 3 pedals makes the operation quicker and safer.

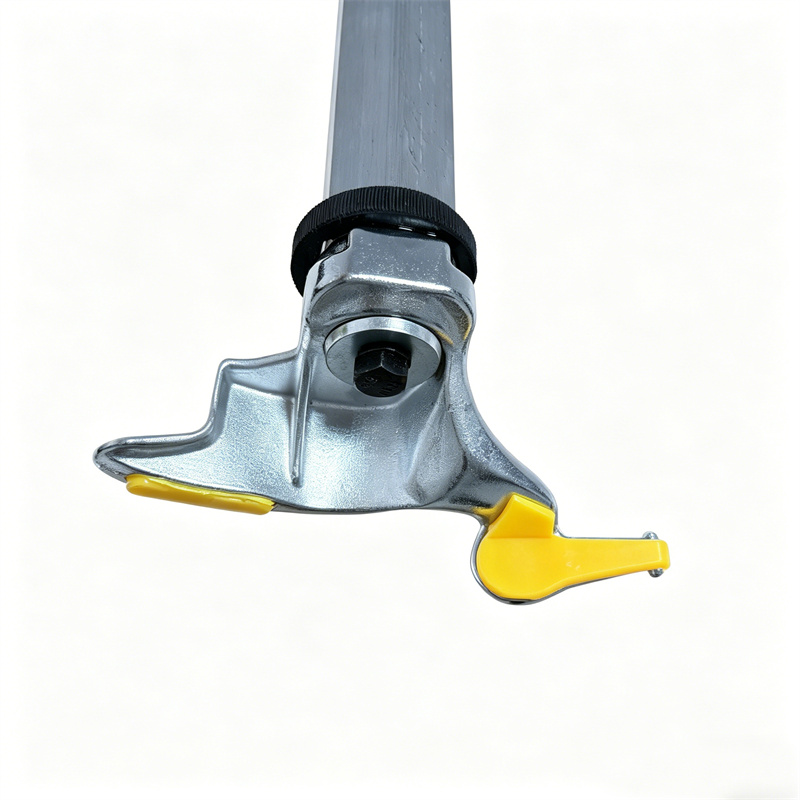

Optional plastic M/D head helps protect expensive alloy wheels

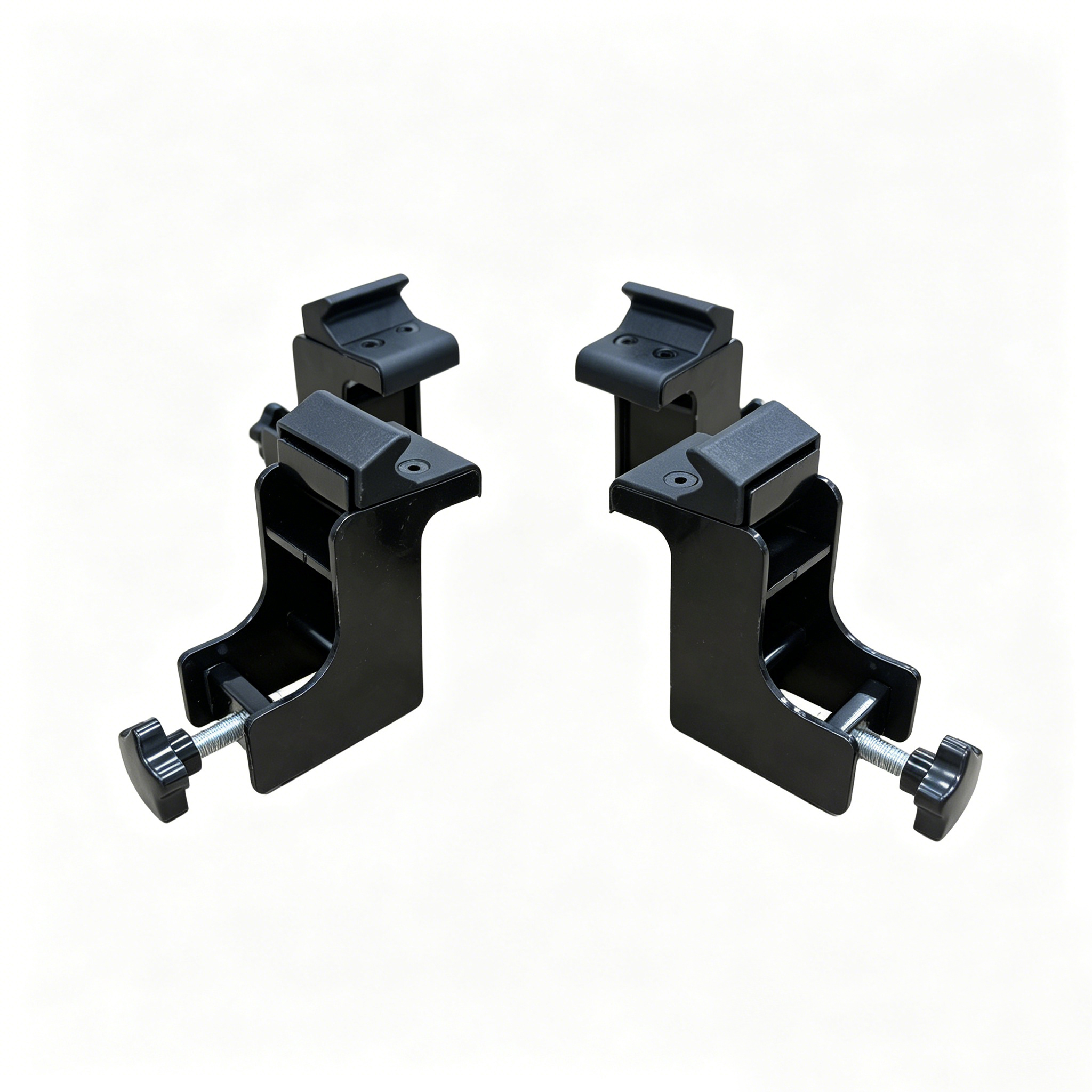

Motorcycle adapter is optional

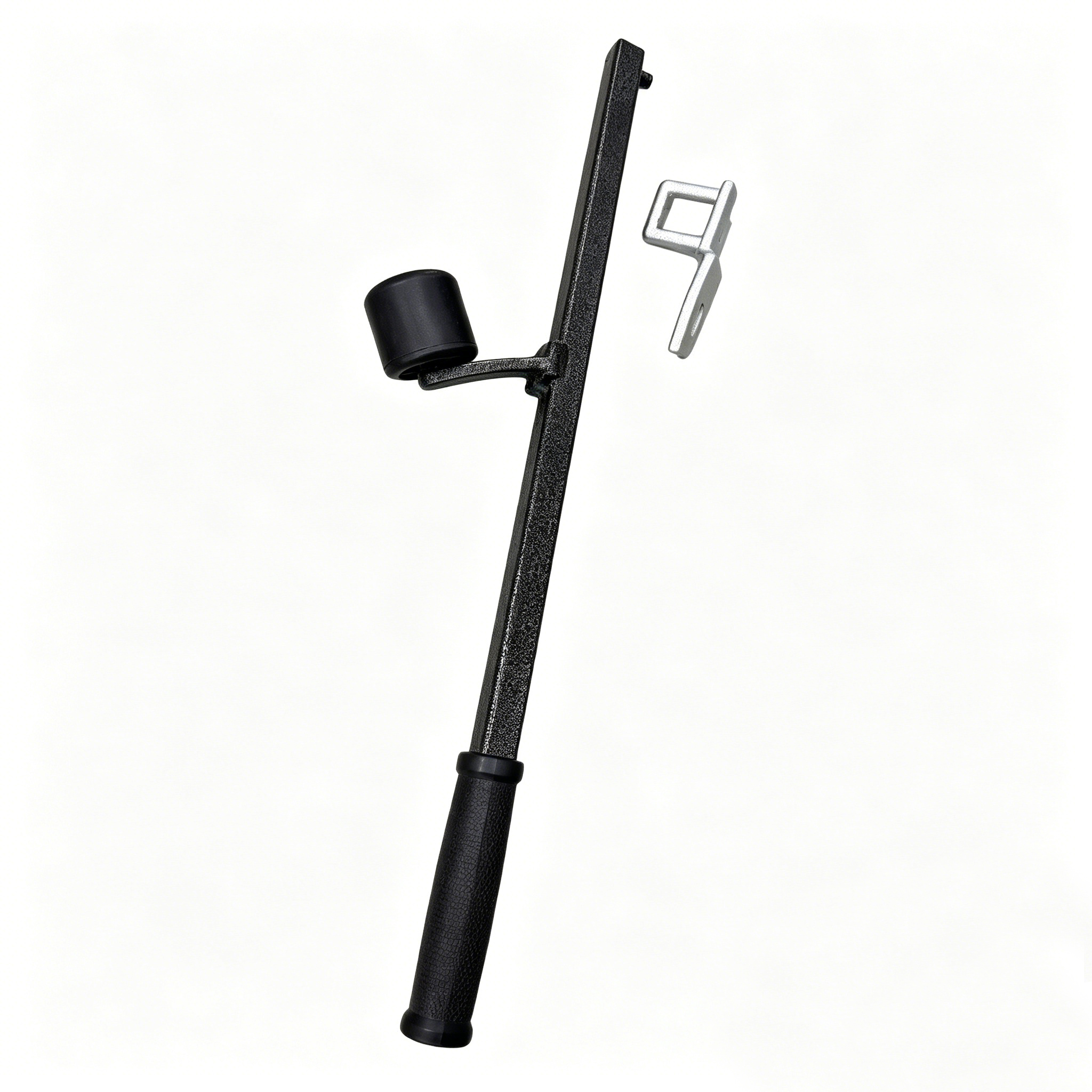

Auxiliary simple bead press lever optional
Specifications
| Power supply | 110V/220V1Ph 220V/ 380V3Ph |
| Motor power | 0.75/1.1KW |
| Bead breaker force | 2500Kg |
| Operating pressure | 0.8～1.0MPa |

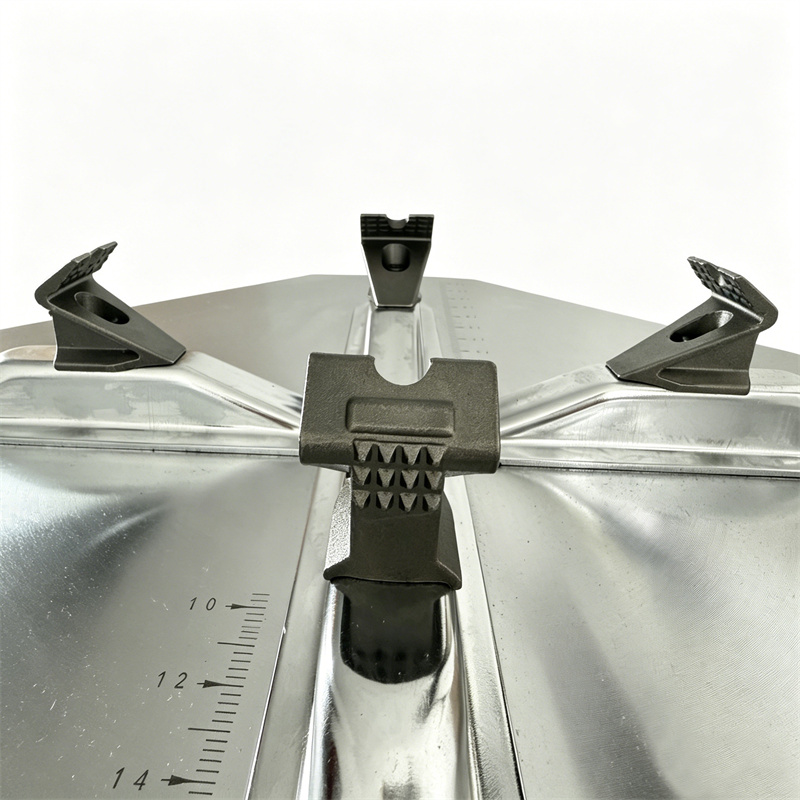

| Rim clamping range(External) | 10"～20" |
| Rim clamping range(Internal) | 10"～22" |
| Rim width | 3"～16" |
| Max wheel diameter | 1000mm |
| Noise | ＜70dB |
| Package size | 1070*770*900mm |
| N.W/G.W | 190Kgs/210kgs |
