Overview

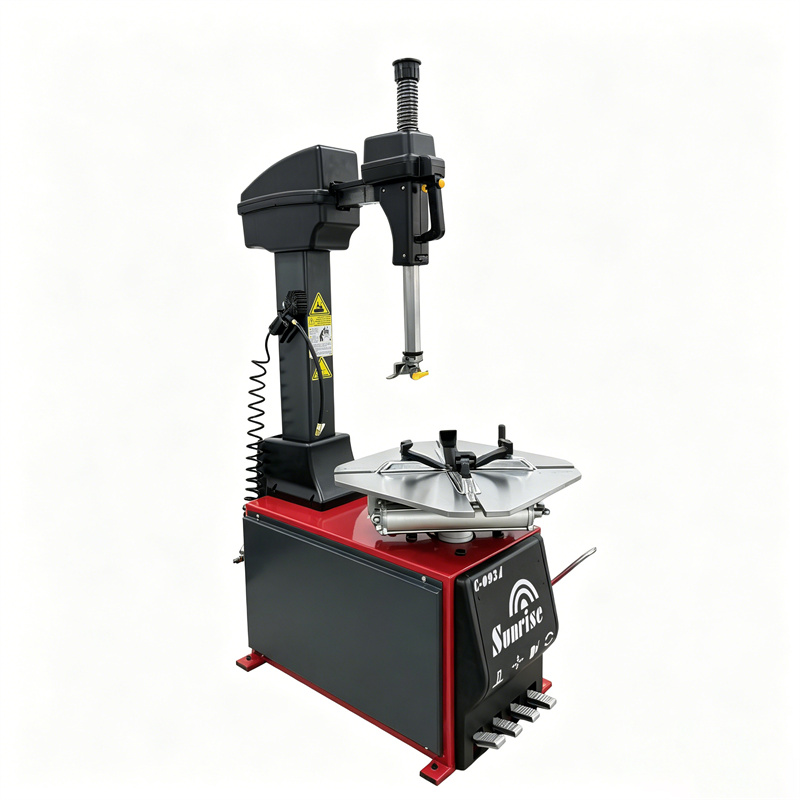

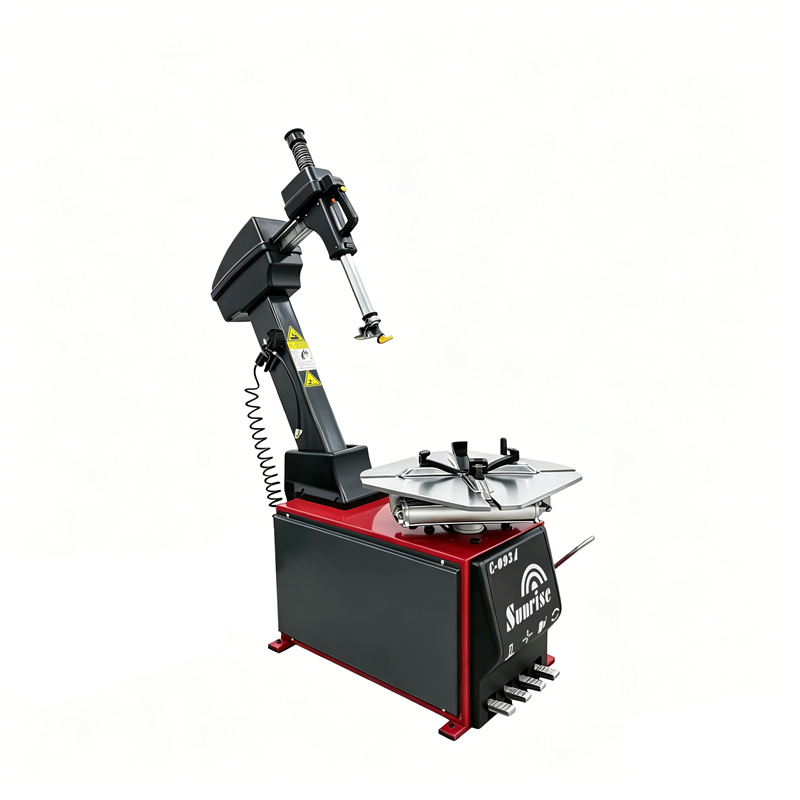

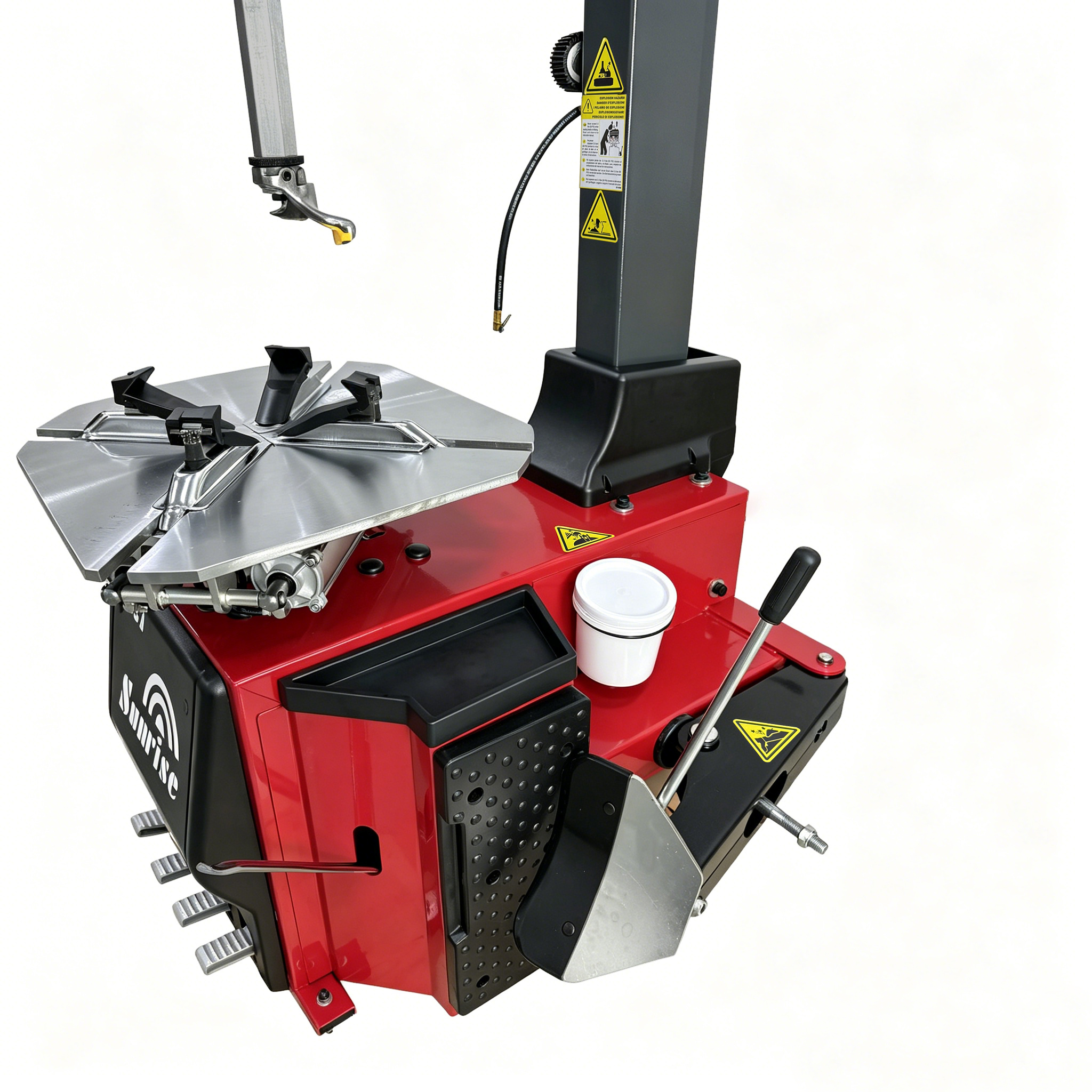

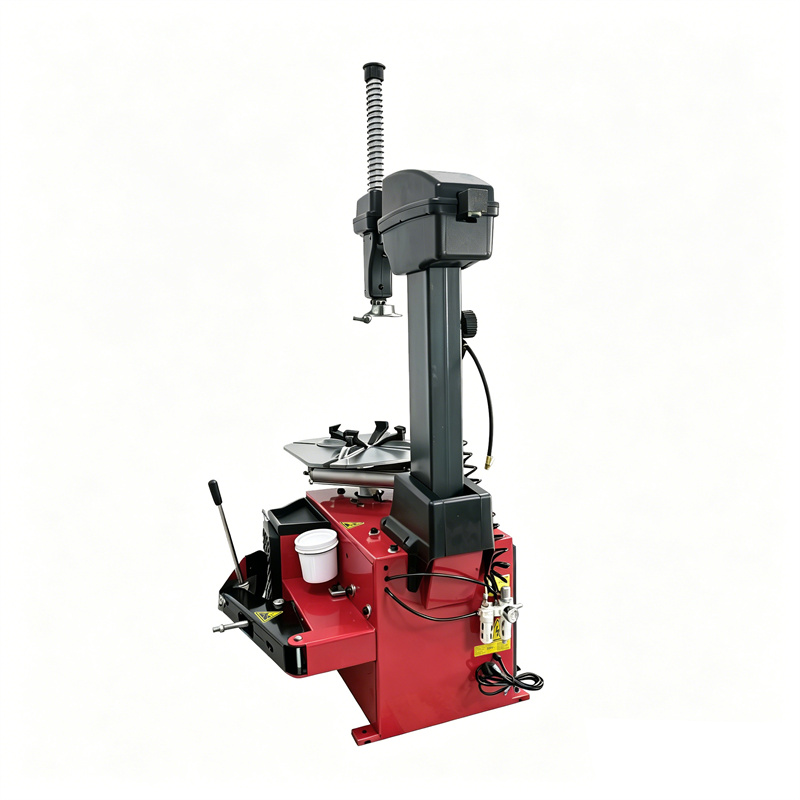

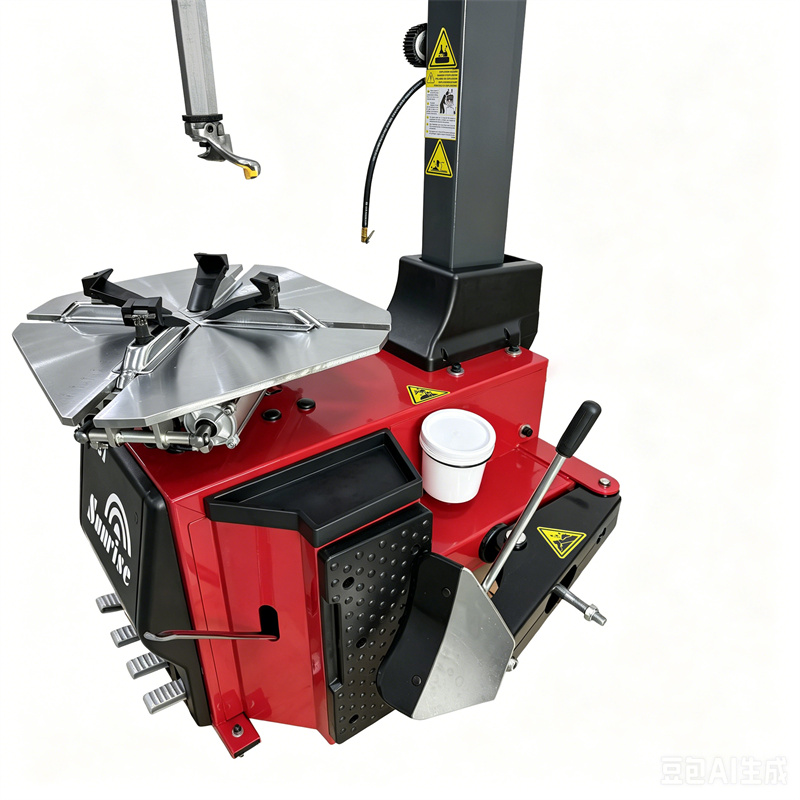

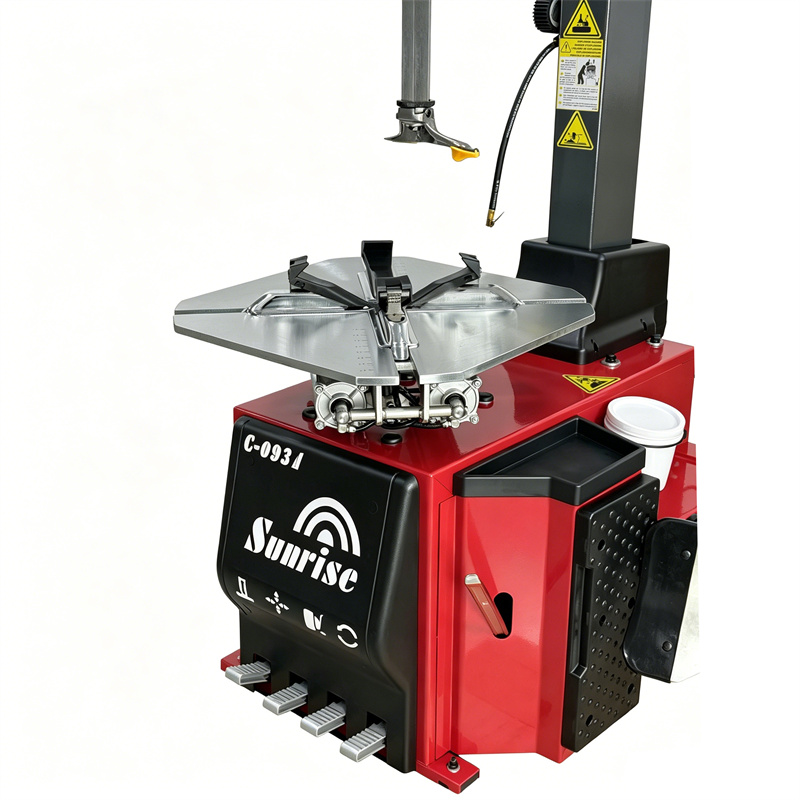

Full automatic tyre changer with pneumatic tilting column.

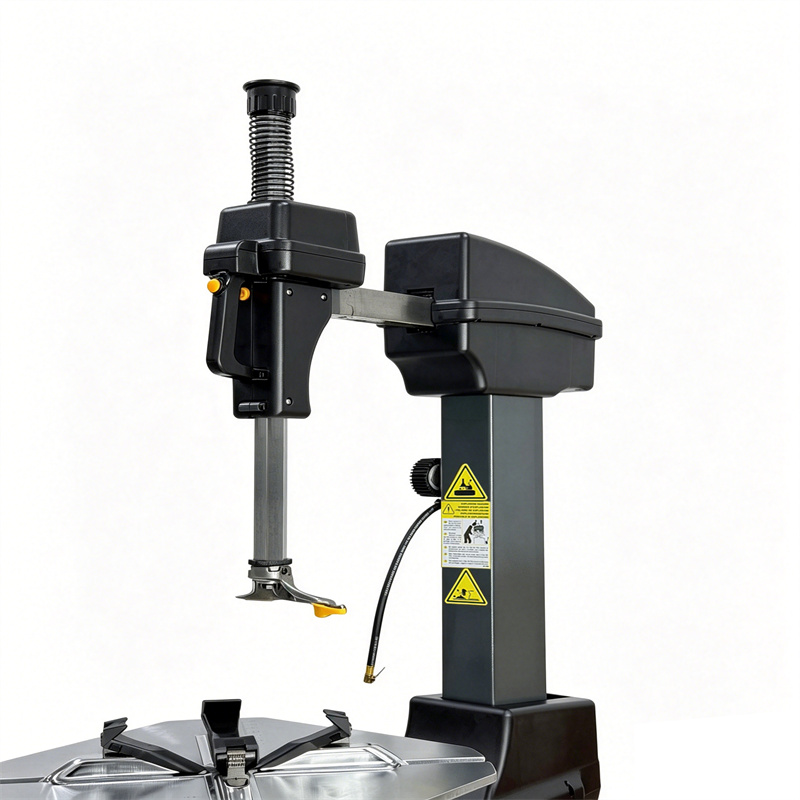

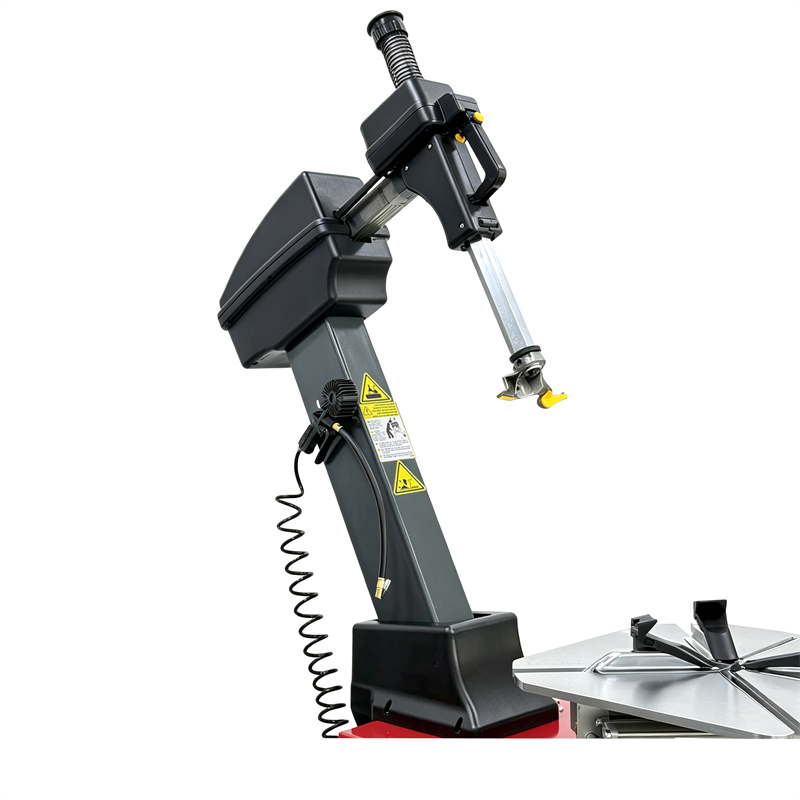

Pneumatic vertical and horizontal arms locking at any position.

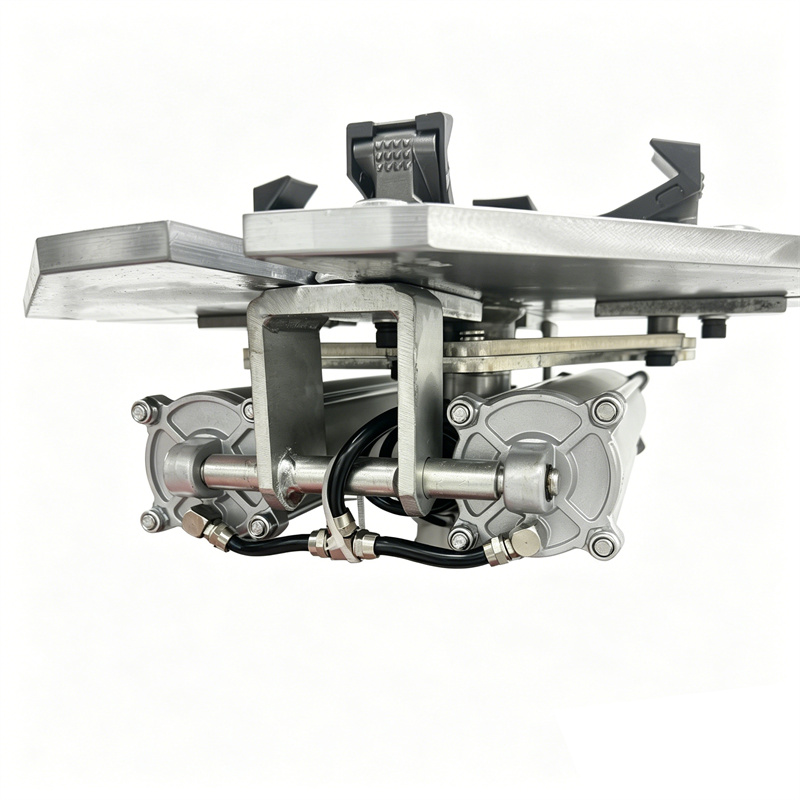

Self-centering function.

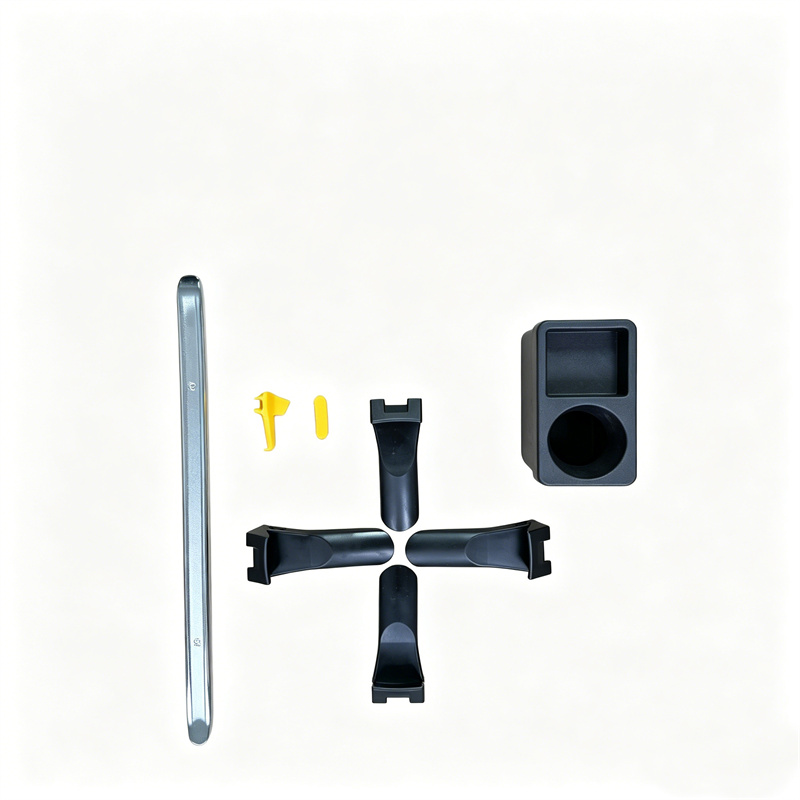

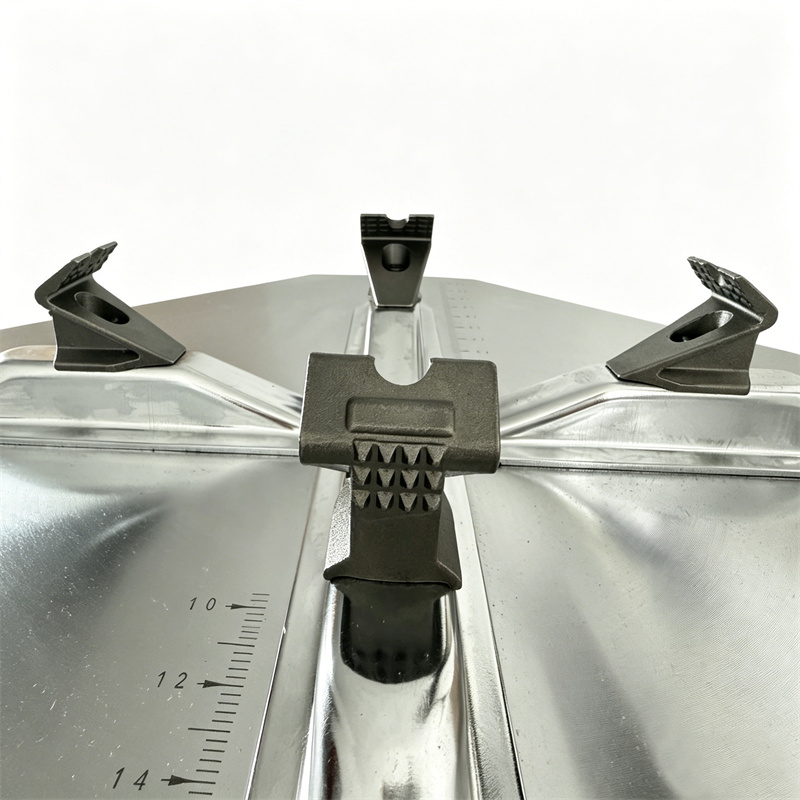

Optional plastic M/D head helps protect expensive alloy wheels.

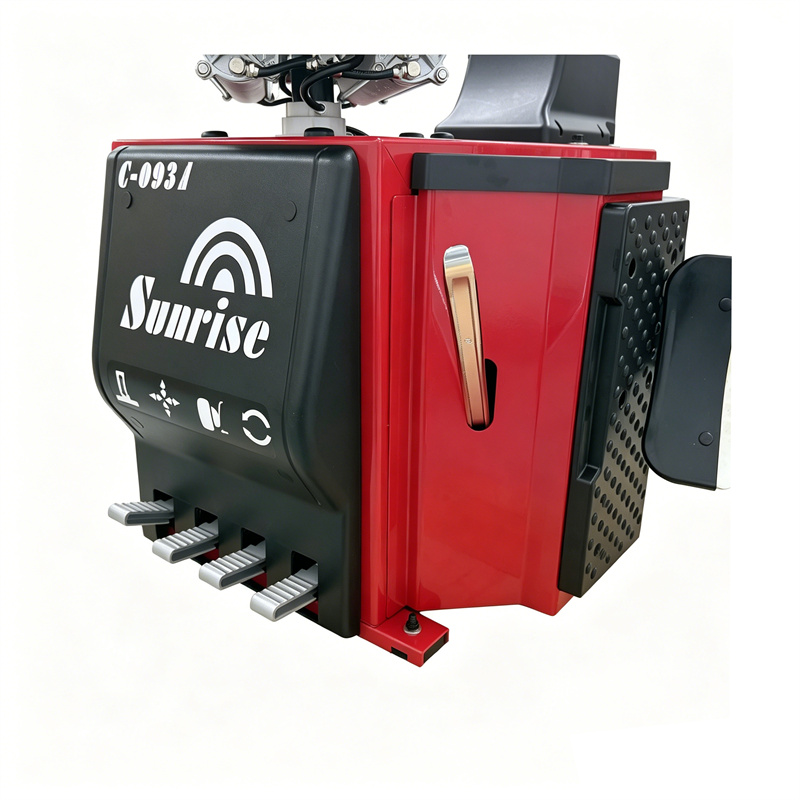

Strong pneumatic bead breaker.

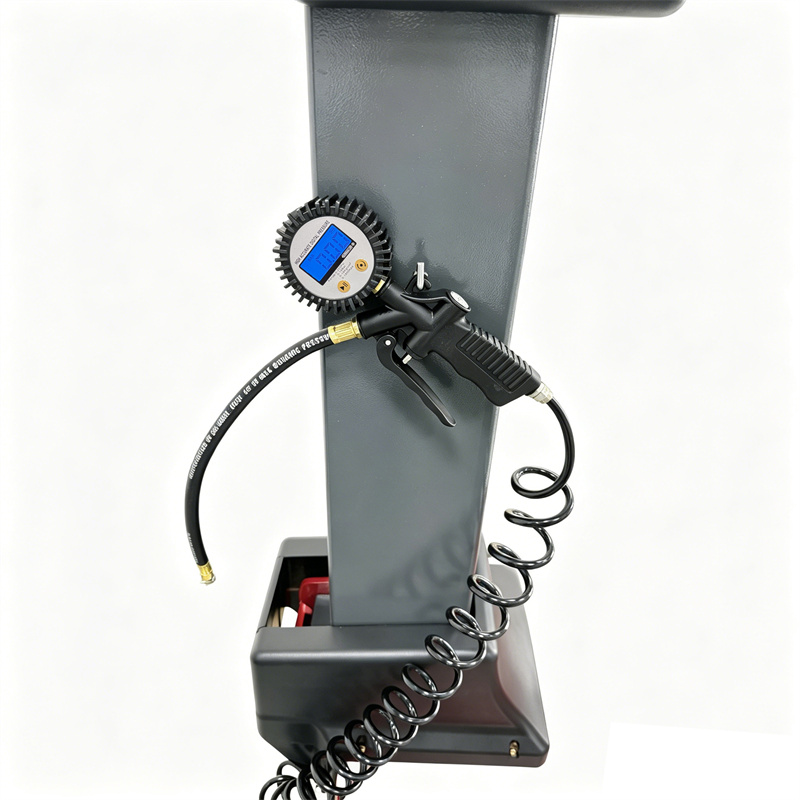

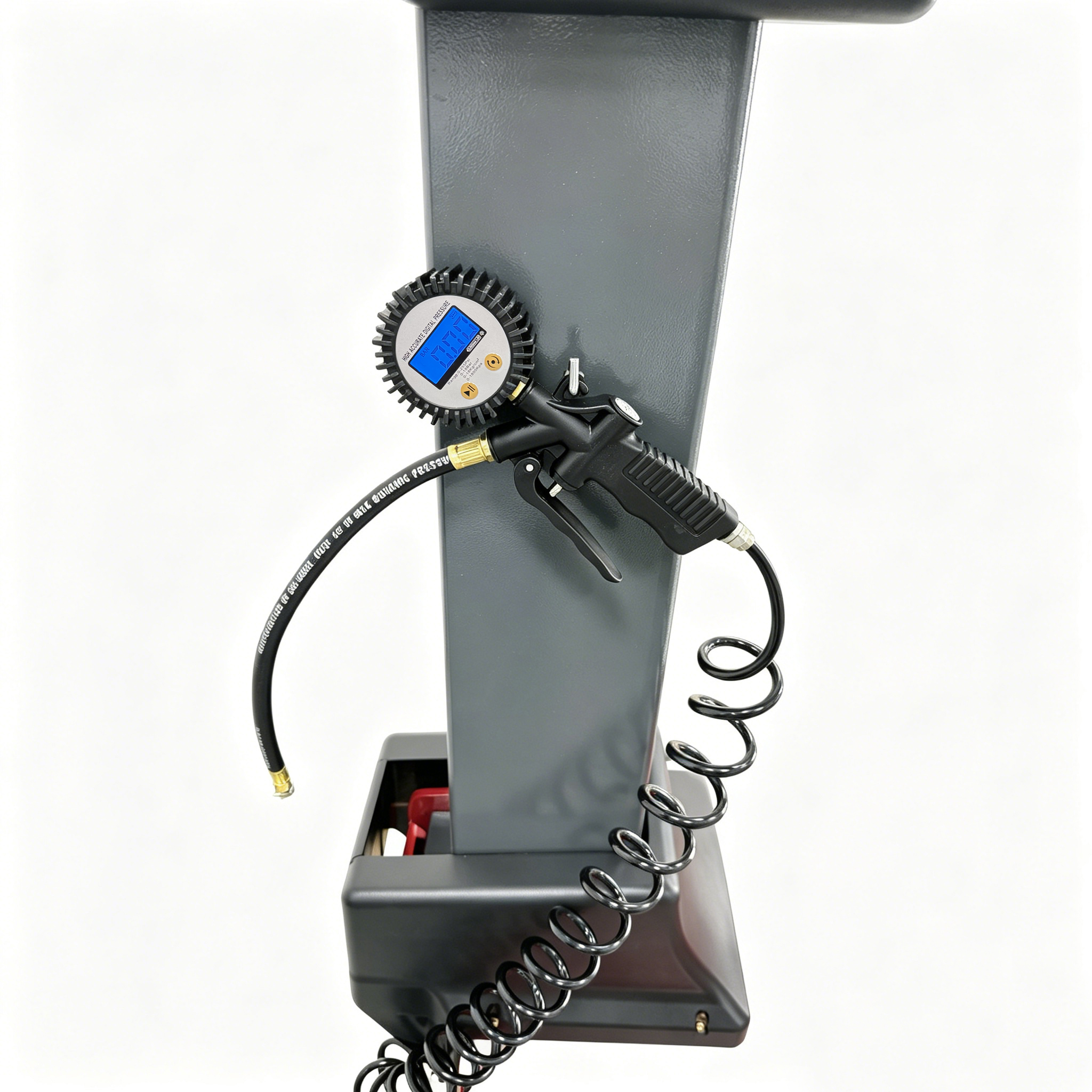

Tubeless inflating device is optional.
Specifications
| Power supply | 110V/220V 1HP；220V/380V 3HP |
| Motor power | 0.75KW/1.1KW |
| Bead breaker force | 2500Kgf |
| Operating pressure | 0.8～1.0MPa |
| Rim clamping range (External) | 10"～22" |
| Rim clamping range (Internal) | 10"～24" |
| Rim width | 3"～16" |
| Max wheel diameter | 1000mm |
| Noise | ＜70dB |
| Package size | 1150*1100*980mm |
| N.W/G.W | 210Kgs/230kgs |
