Overview

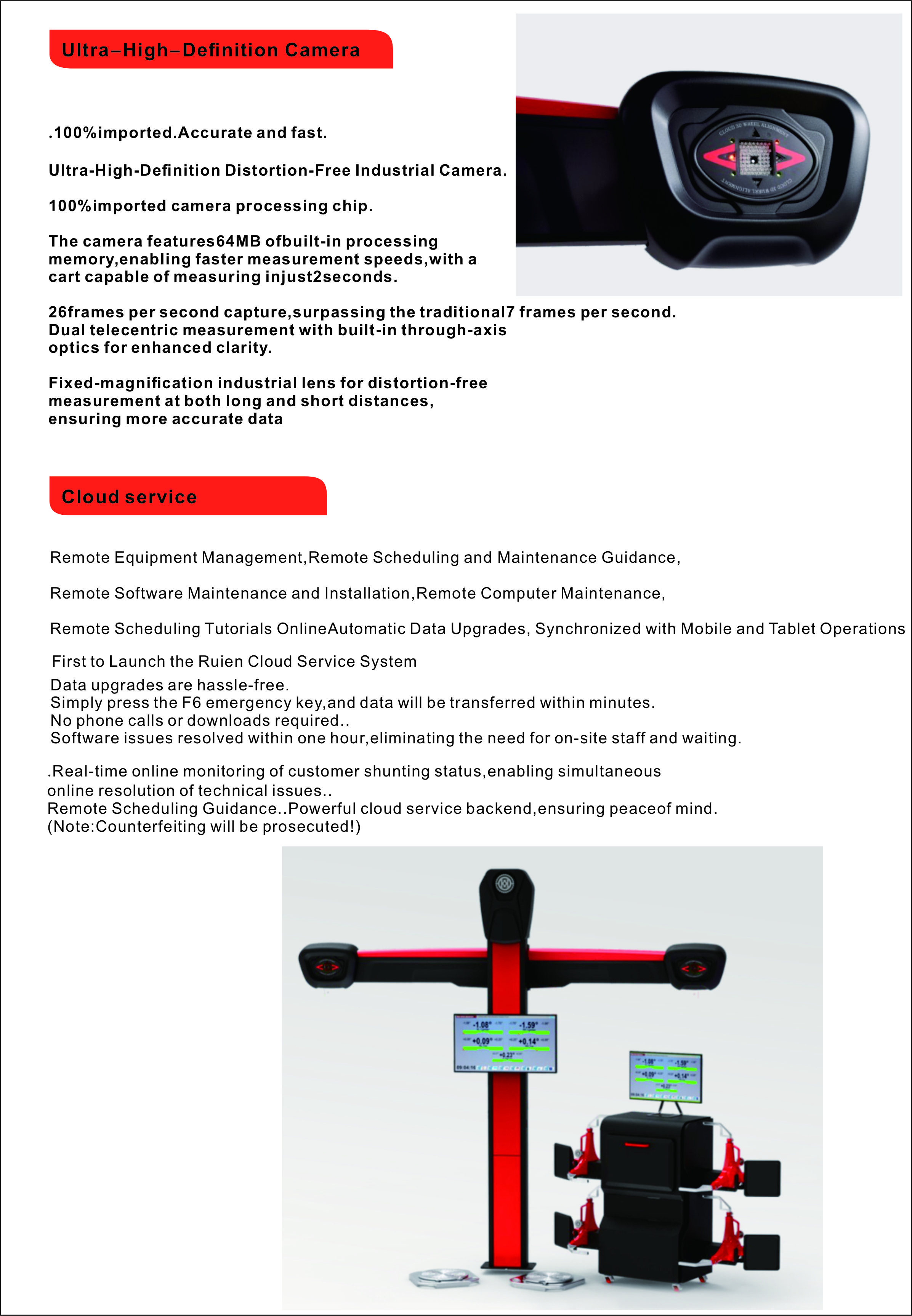

1. Ultra-High-Definition Distortion-Free Industrial Camera, 26 frame/s imaging capture
2. Remote equipment management,remote software maintenance and installation,remote computer maintenance,remote scheduling tutorials
3. Large AI models automatically analyze shunting data
4. Coanda technology achieves reliable automatic compensation
5. Taiwanese brand power supply,85V-260V ultra-wide input voltage
6. Fast all-in-one computer, Win10 Operating System

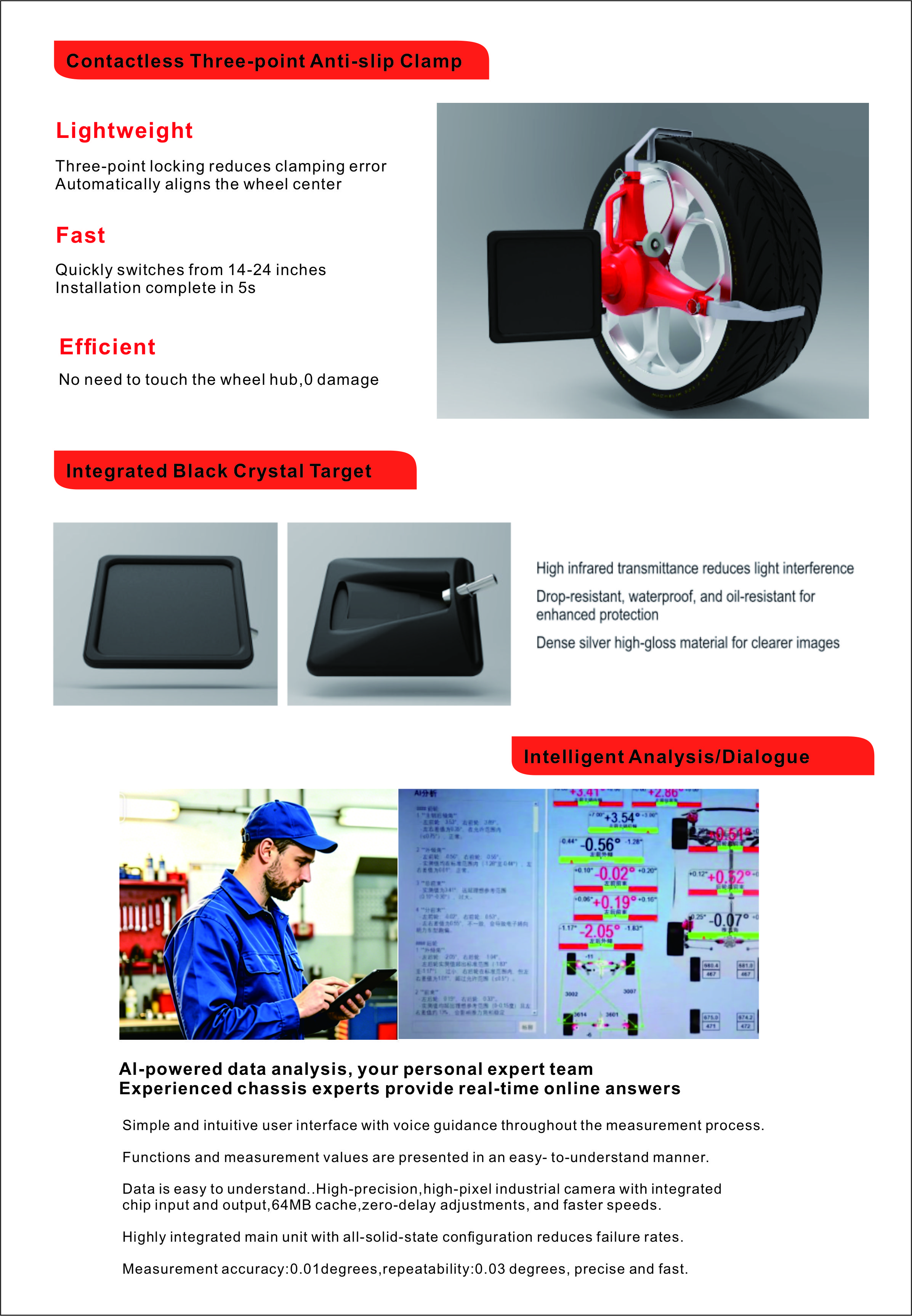

7. AI-powered data analysis,intelligent conversation,seamless connection
8. Not affected by the level deviation of the lift, eliminating the drawback of traditional 3D aligners restricted by site conditions
9. High accuracy, up to 0.01 degree, Precise and Fast
10. Client management system and printer
11. Key technology. More Powerful, More profit
12. 32 inches industrial grade display
13. 24H cloud service

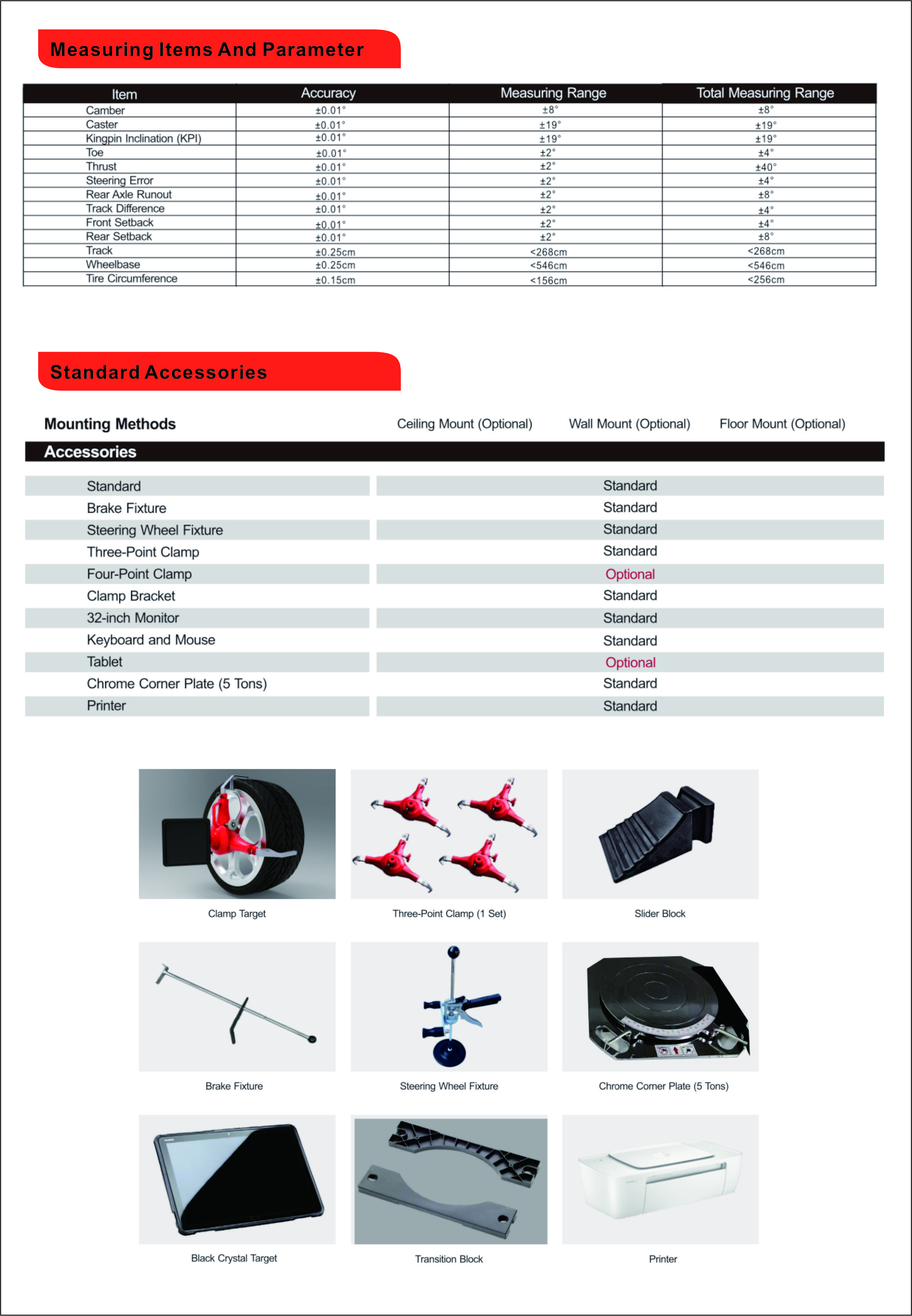

Measuring items and parameters
| Items | Accruacy | Measuring Range | Total Measuring Range |
| Camber | ±0.01° | ±8° | ±8° |
| Caster | ±0.01° | ±19° | ±19° |
| SAI | ±0.01° | ±19° | ±19° |
| TOE | ±0.01° | ±2° | ±4° |
| Thrust Angle | ±0.01° | ±2° | ±40° |
| Steering angle | ±0.01° | ±2° | ±4° |
| Rear axle deflection | ±0.01° | ±2° | ±8° |
| Track width difference | ±0.01° | ±2° | ±4° |
| Front set-back | ±0.01° | ±2° | ±4° |
| Rear set-back | ±0.01° | ±2° | ±8° |
| Wheel tread | ±0.25cm | <268cm | <268cm |
| Wheel base | ±0.25cm | <546cm | <546cm |
| Wheel circumference | ±0.15cm | <156cm | <256cm |
