Overview
The ideal high-efficiency solution for modern auto repair shops

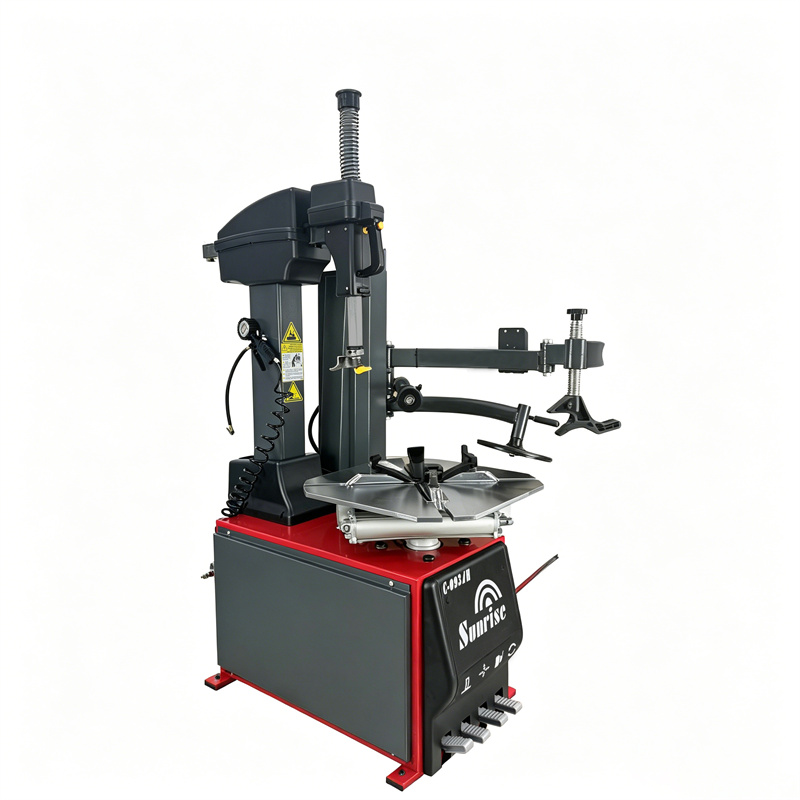

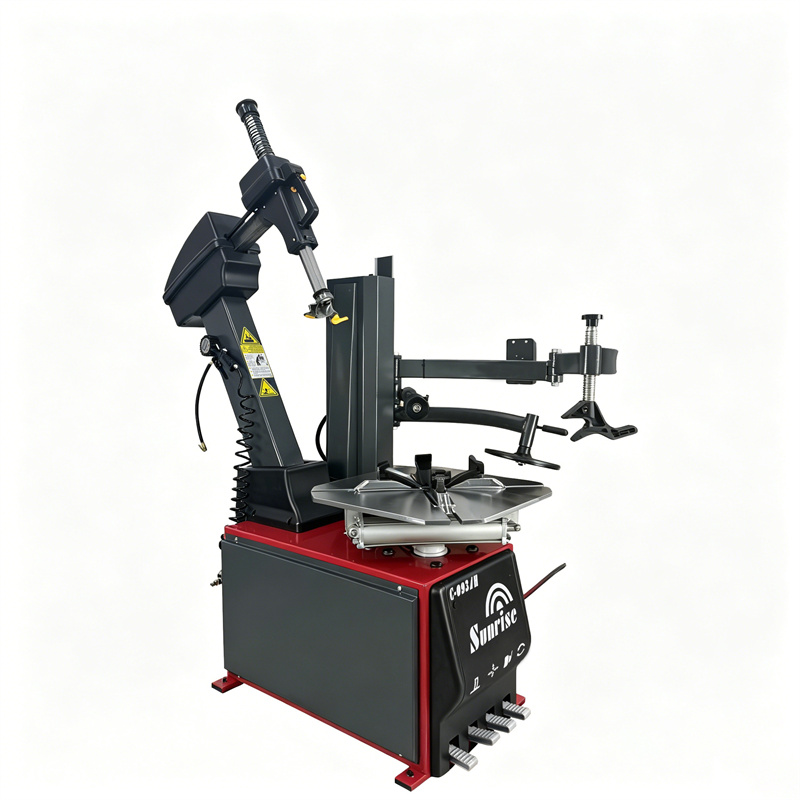

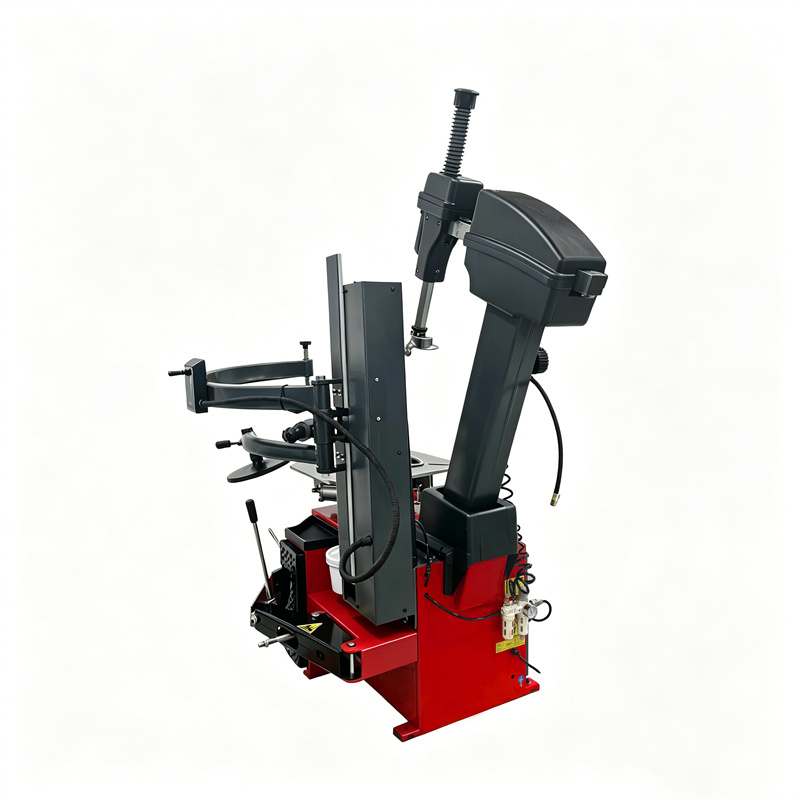

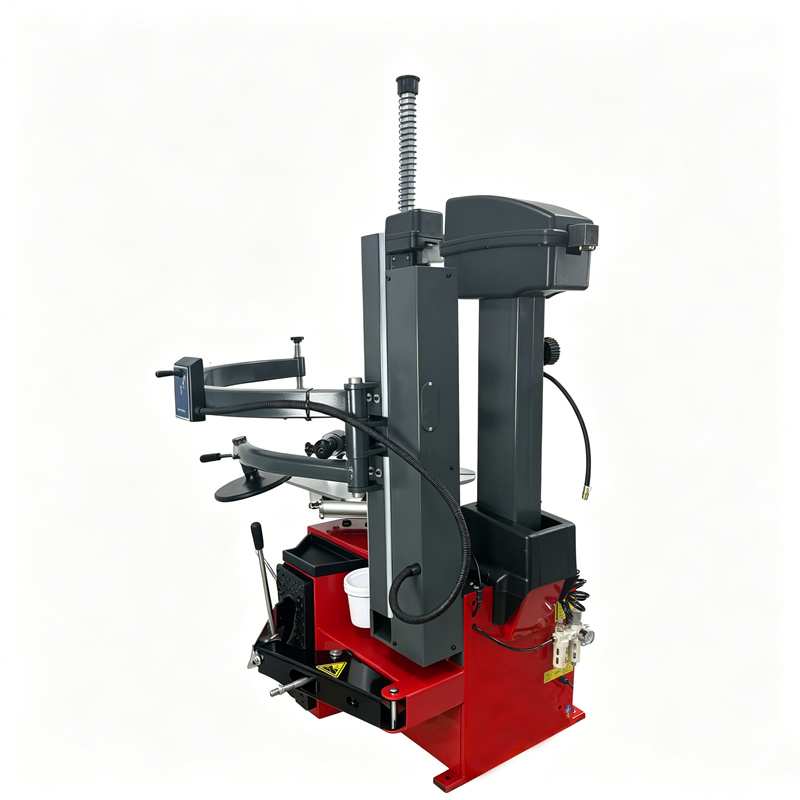

Pneumatic powered tilting column

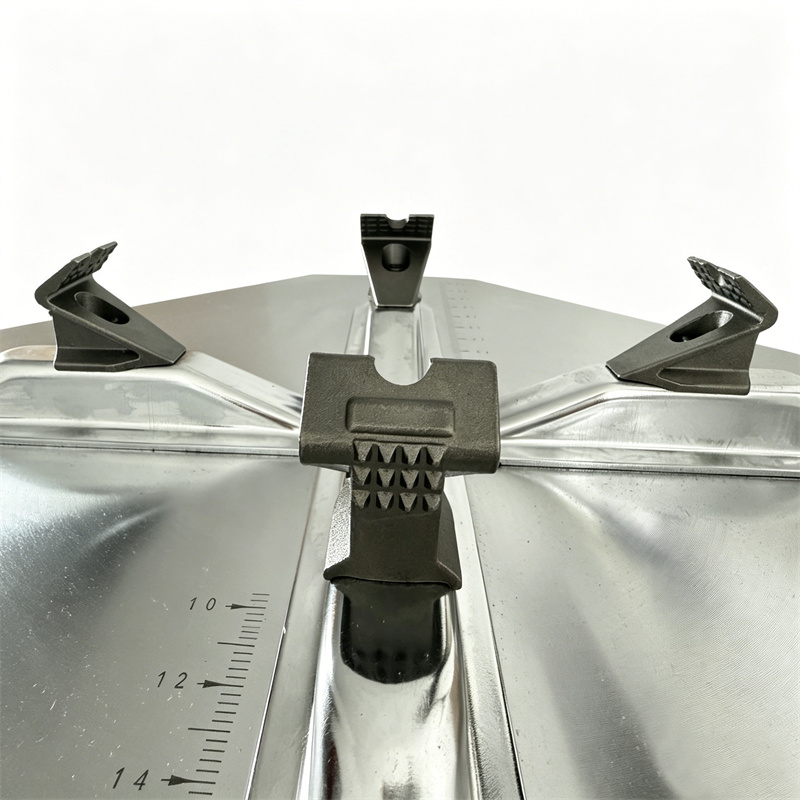

Built-in center clamping cylinder, more compact with more uniform force distribution
Pneumatic assist arm is designed to mounting/demounting hard-bead tires such as low-profile tires and run-flat tires.

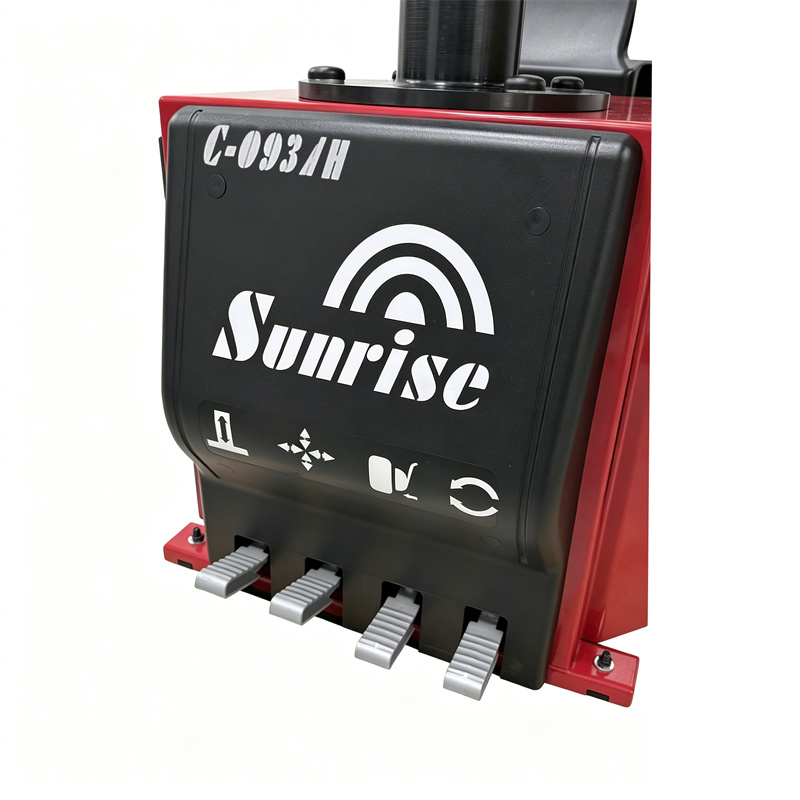

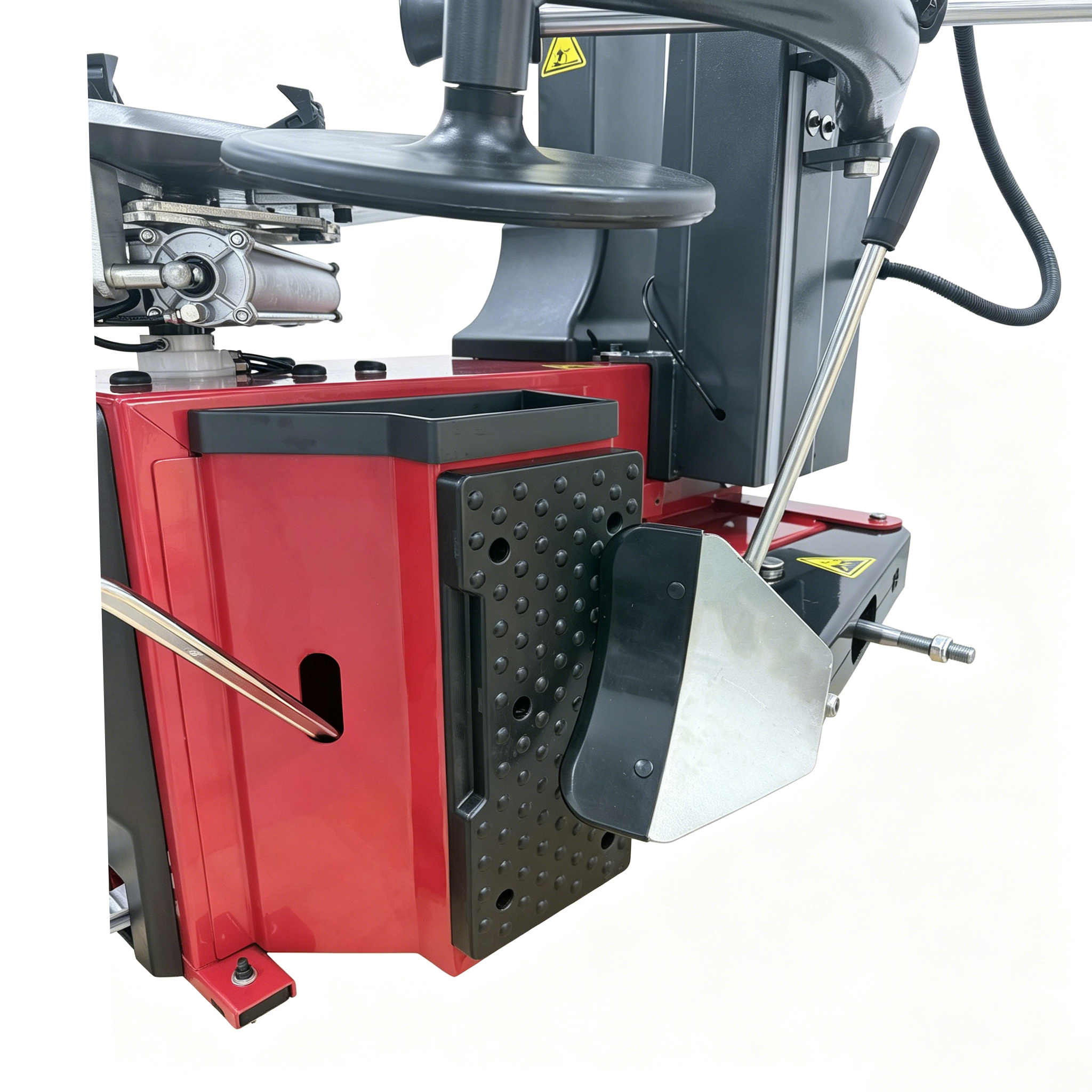

Standardized pneumatic foot pedal controls greatly reduce technicians' labor intensity and enable efficient tire changing operations
Standardized process, fast speed, high stability

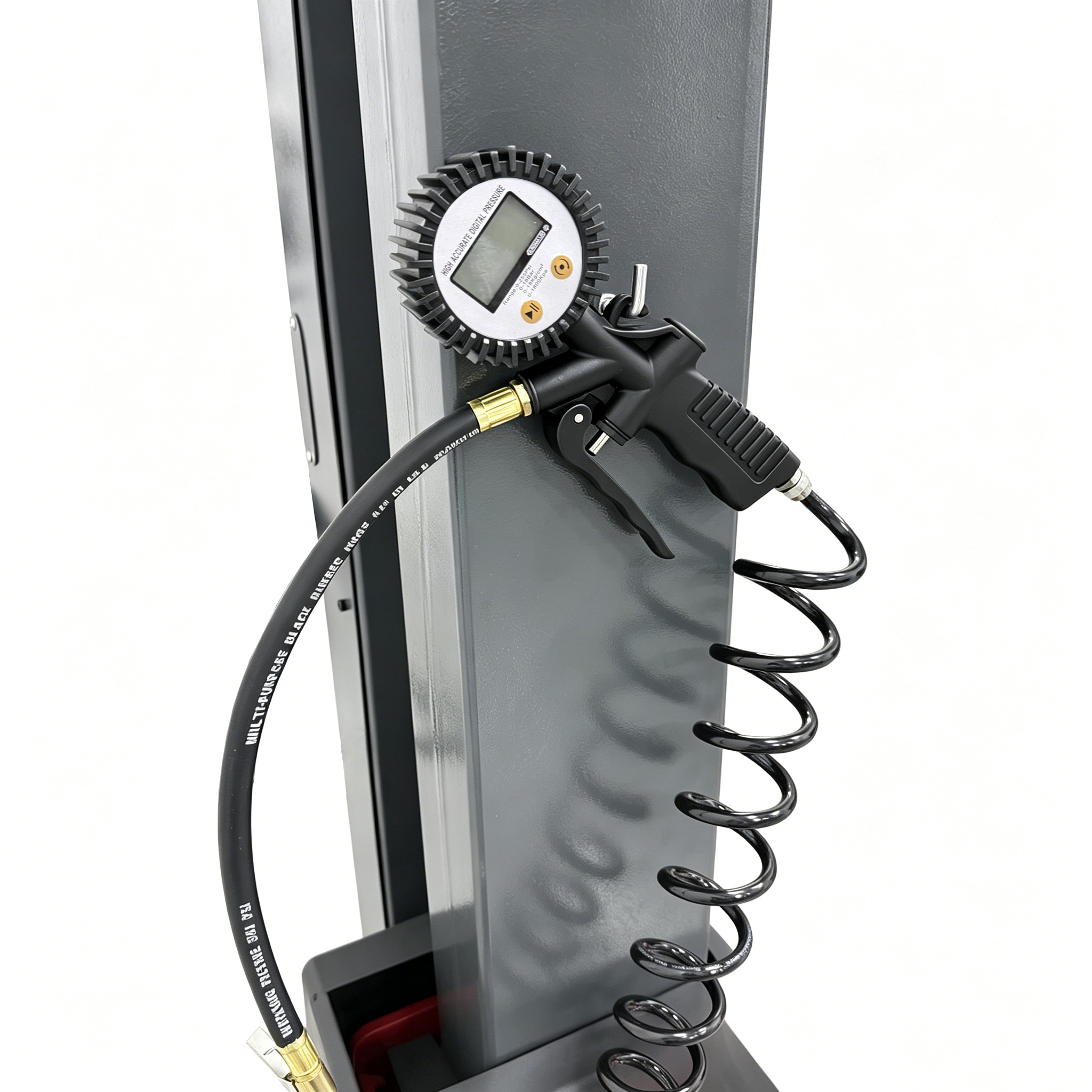

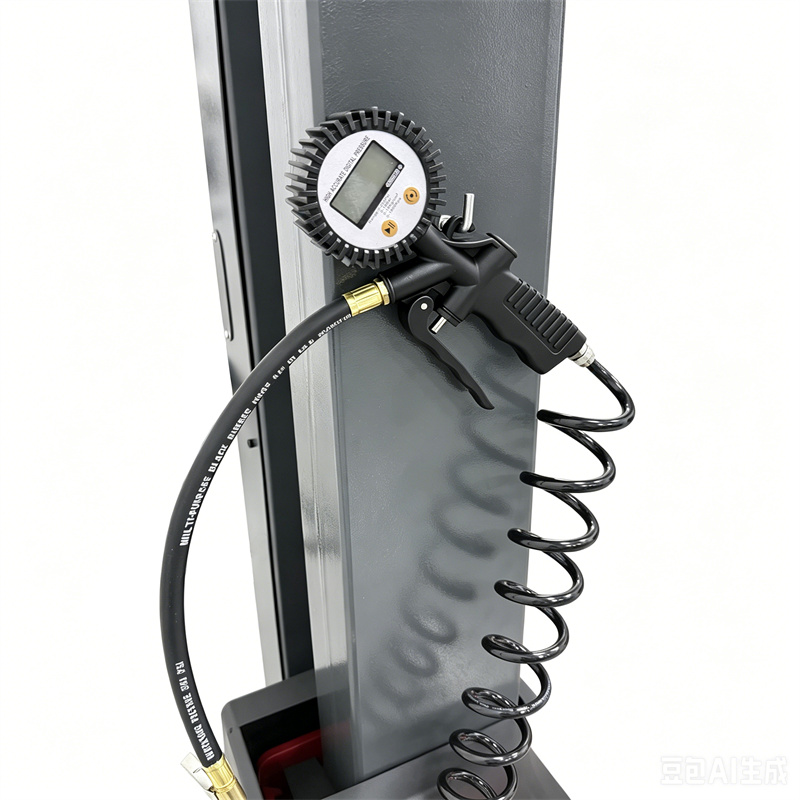

Tubeless inflating device is optional
Specifications
| Power supply | 110V/220V1HP 220V/ 380V3HP |
| Motor power | 0.75/1.1KW |
| Bead breaker force | 2500Kgs |
| Operating pressure | 0.8～1.0MPa |
| Rim clamping range(External) | 10"～22" |
| Rim clamping range(Internal) | 10"～24" |
| Rim width | 3"～16" |
| Max wheel diameter | 1200mm |
| Noise | ＜70dB |
| Package size | 1150980980mm |
| N.W/G.W | 285Kgs/322kgs |
