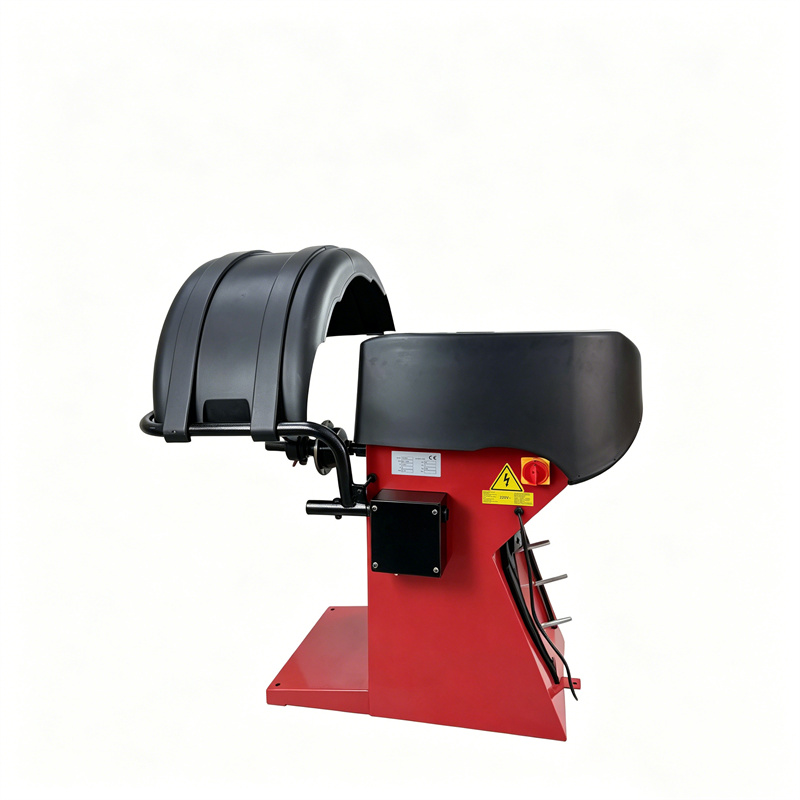

Overview
Suitable for standard and alloy wheels for passenger cars and light commercial vehicles
Automatic data entry for distance and wheel diameter
Gram/ounce selection and mm/inch selection.
ALU1/ALU2/ALU3 balancing modes for light alloy wheels.
Automatic start/stop
Self diagnosis and calibration.

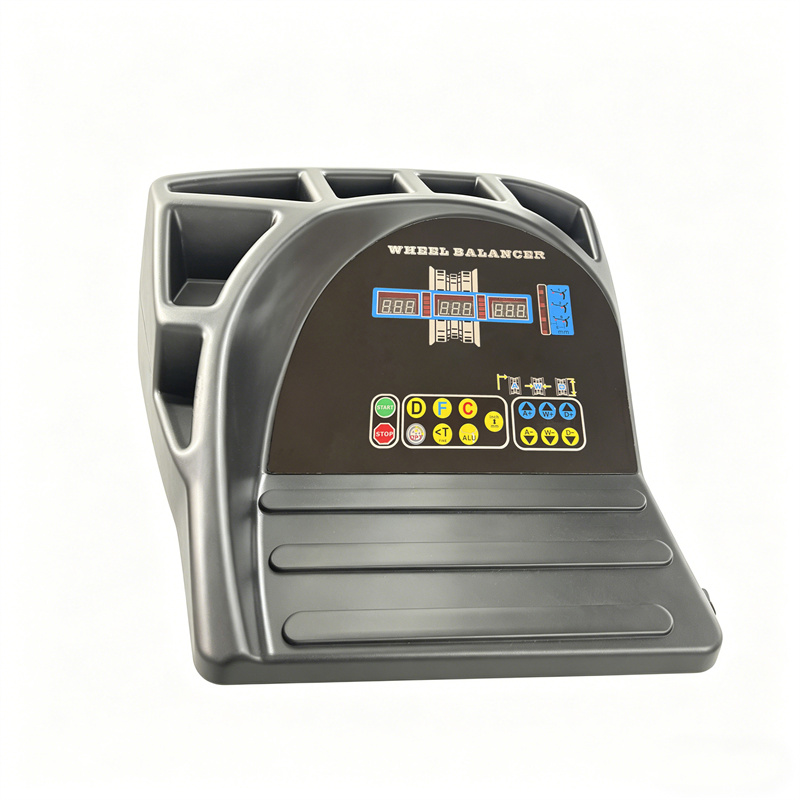

Full display for a.b.d reading
Laser and radar optional
Specifications
| Power supply | 110V/220V1ph 220V/380V3ph |
| Motor power | 185～320W |
| Balancing speed | ≤190r.p.m |
| Balancing Precision | ±1g |
| Rim diameter | 255～615mm（10"-24"） |
| Rim width | 40～510mm（1.5"-20"） |
| Max wheel weight | 70kg |
| Noise | ＜70dB |
| Package size | 970*770*900mm |
| N.W/G.W | 100kg/120kg |
