Heavy-duty truck tire changer SR568

  • Overview
  • Specifications
  • Recommended Products

Overview

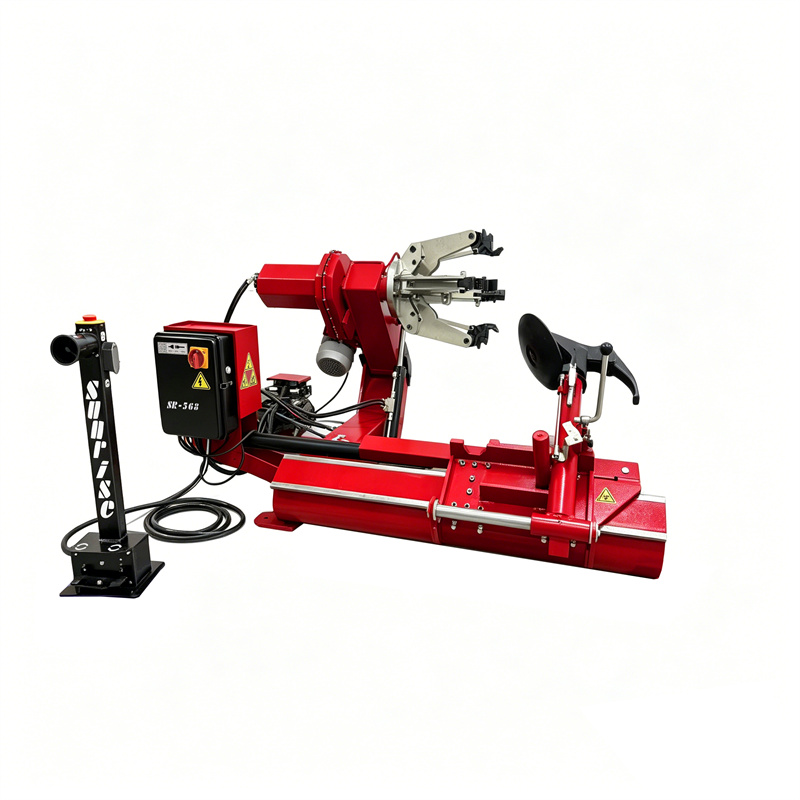

1.Horizontal truck Tire Changer, for tires of large vehicles such as trucks, buses, trailers,and engineering vehicles.

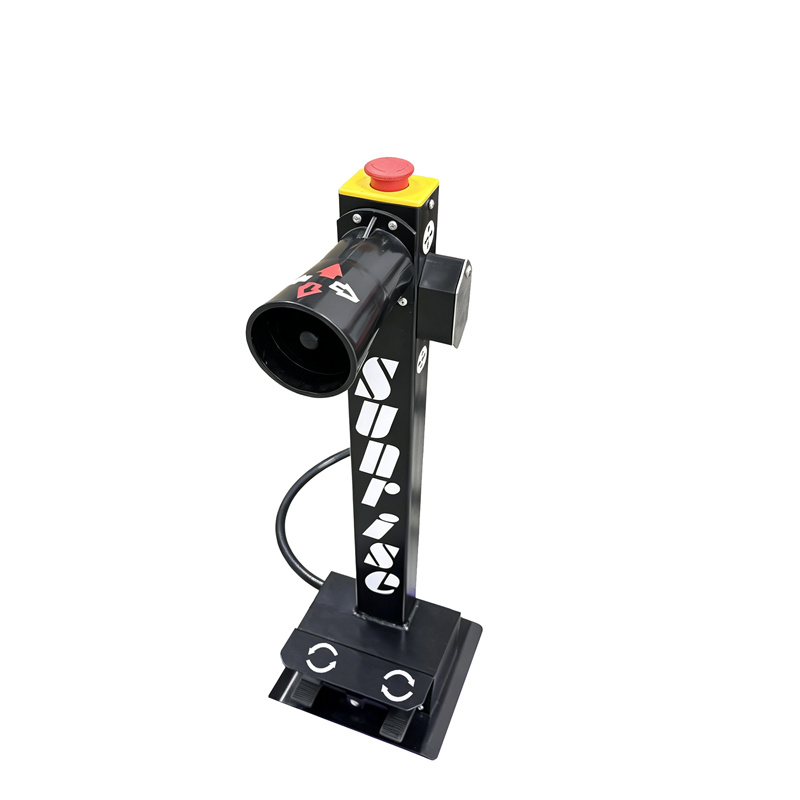

2.Thick external wires link the remote column and main power assembly with safe 24V low voltage control

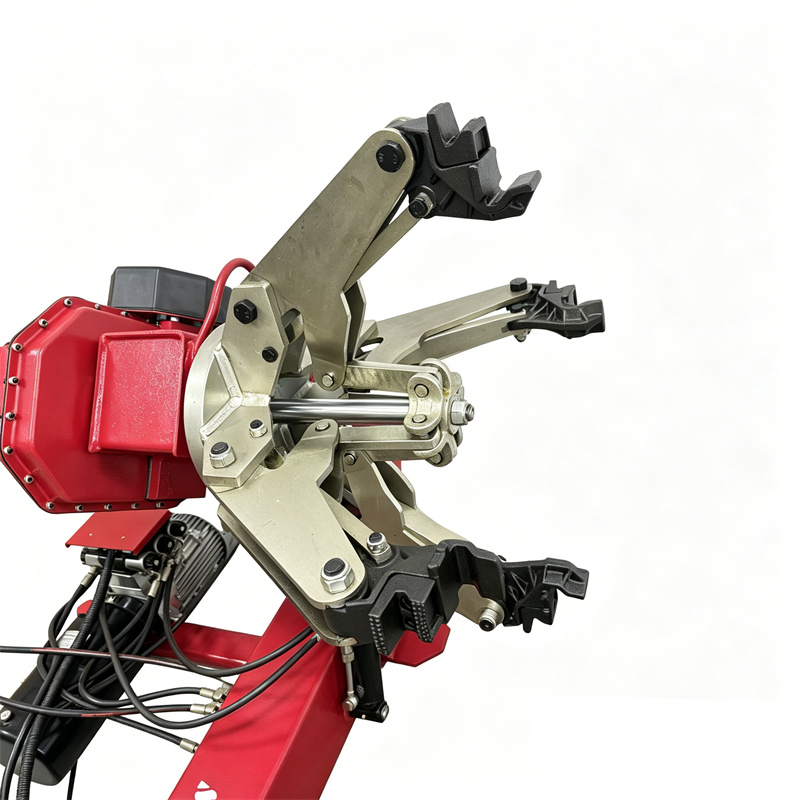

3.Synchronous 4-jaw self-centering chuck, fits 14–26 inch truck & tubeless wheel rims

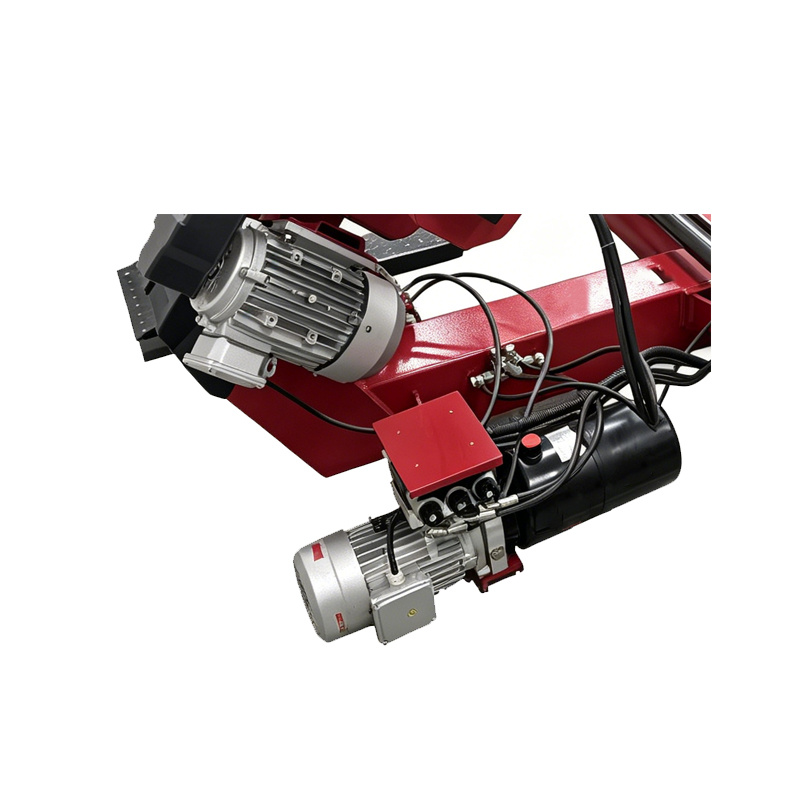

4.A high-power reducer drives the chuck to rotate forward and reverse with large torque, firmly clamping heavy wheel rims without slipping

5.Long base sliding track with front-back adjustment, fits truck tires in all widths and diameters

Specifications

Power supply 220V/ 380V 50/60Hz 1Ph/3Ph optional
Rim diameter 14"~26"
Max.tire weight 500kgs
Max.tire width 780mm
Max.tire diameter 1600mm
Hydraulic pump motor 1.5KW 380V/3Ph(220V optional)
Hearbox motor 2.2KW 380V/3Ph(220V optional)
Bead breaker force 2500kgs
Operation control voltage 24V
Overall dimensions approx 2500*2000mm
N.W/G.W 588Kgs/650Kgs

  • Heavy-duty truck tire changer SR568 (5).jpg
  • Heavy-duty truck tire changer SR568 (1).jpg
  • Heavy-duty truck tire changer SR568 (3).jpg
  • Heavy-duty truck tire changer SR568 (6).jpg
  • Heavy-duty truck tire changer SR568 (2).jpg
  • Heavy-duty truck tire changer SR568 (4).jpg
